MikroTik RB911G-2HPnD-12S, mANTBox 2 12s, 12dBi, 30dBm, 120°, 600MHz, 64MB, 2.4GHz, 1xGigabit, L4
Κωδικός Cableworks: 1002.262

BrandMikrotik MPNRB911G-2HPnD-12S ΕΓΓΥΗΣΗ24 μήνες

€102.00

χωρίς ΦΠΑ €82.26

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Επιστροφές εντός 14 ημερών - Υπο Προϋποθέσεις
ΕΛΤΑ COURIER απο 1,77€ + ΦΠΑ
ACS COURIER απο 2,00€ + ΦΠΑ
ΠΡΑΚΤΟΡΕΙΟ για πάνω απο 25kg - Τρίτες και Πέμπτες - Χρέωση Παραλήπτη
Παραλαβή από έδρα

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

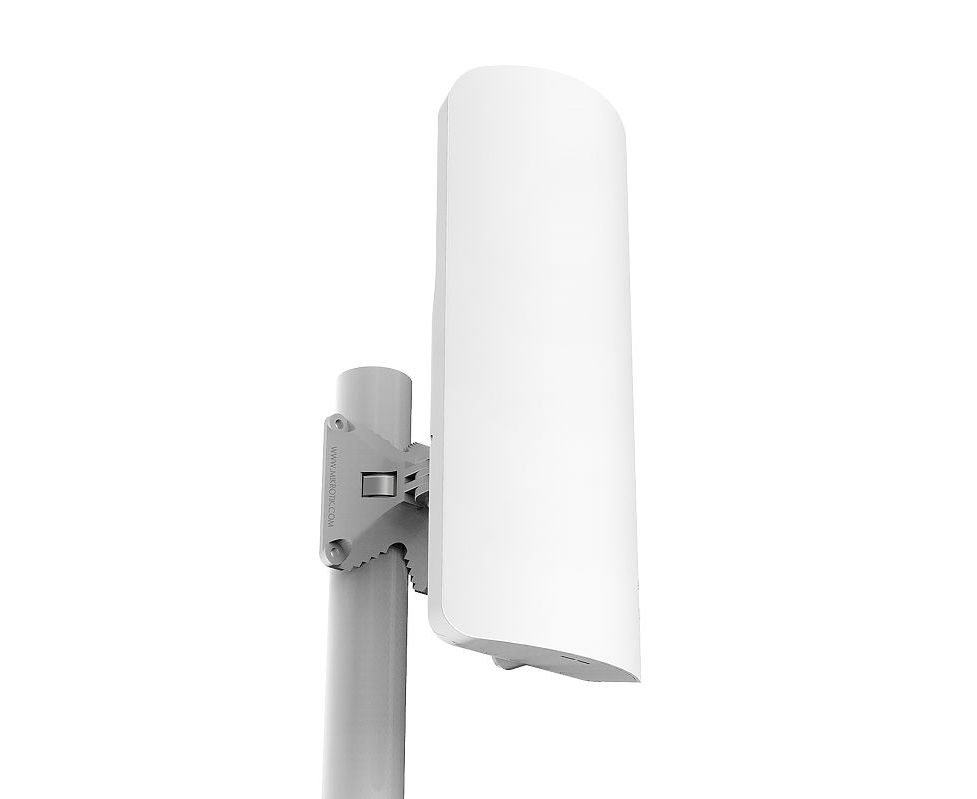

mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz.

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power.

Specifications

Details
Product code	RB911G-2HPnD-12S
CPU	AR9342
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	140 x 348 x 82 mm
License level	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C .. +70°C

Powering

Details
PoE in	Passive PoE
PoE in input Voltage	10-28 V
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	11

Wireless

Details
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	12
Wireless 2.4 GHz chip model	AR9342

Ethernet

Details
10/100/1000 Ethernet ports	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Wireless specifications

Ethernet test results

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	30	-100
11MBit/s	30	-94
6MBit/s	30	-96
54MBit/s	27	-78
MCS0	30	-96
MCS7	24	-73

RB911G-2HPnD-12Sr2		AR9342 1G 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
