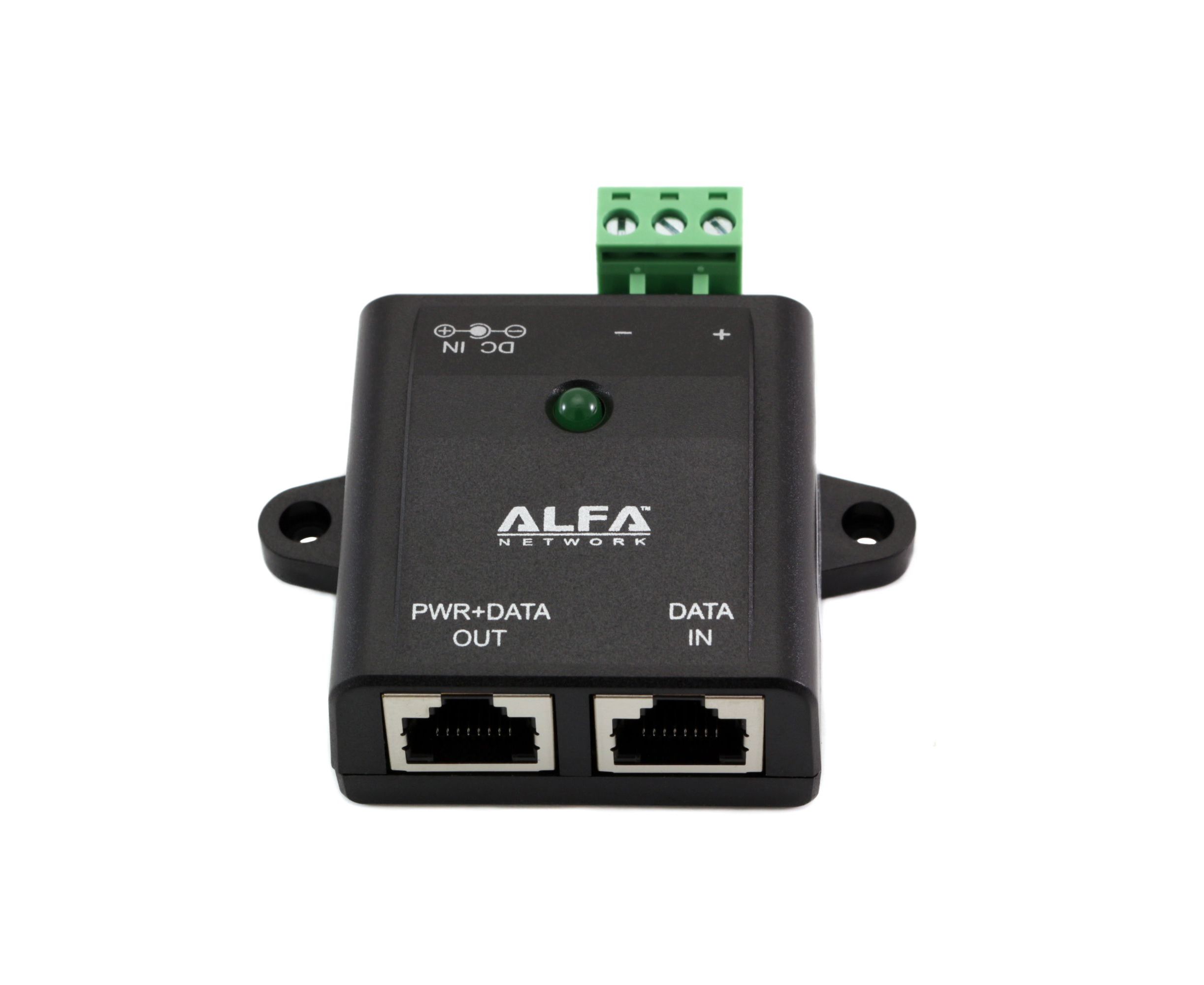

Alfa Networks APOE03GS, Industrial Single-Port Passive Gigabit Redundant PoE Midspan/Injector with Reset Button Feature and Surge Protection
Κωδικός Cableworks: 1295.005

BrandALFA MPNAPOE03GS
22.07
χωρίς ΦΠΑ 17.80
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

DESCRIPTION
The APOE03GS is the Single-Port Gigabit ( 10/100/1000 Base-T) redundant PoE Midspan/Injector with Hi-Power sourge protection that provides DC power for PoE equipped Network Appliance device. It is compatible with devices that support the IEEE 802.3af/at standard PoE power feed using Mode B (Pins 4/5 and 7/8).

The APOE03GS fetures surge protection for the data and power feeds for networks. The design utilizes three-pole differential Gas Tubes. The tubes feature ultra-low Line to Line and Line to Ground capacitance to minimize distortion of high-speed signals.

The APOE03GS features terminal block for Power redundancy, the power redundancy ensures that vital network capabilities are always available when needed, and also makes life easier for any IT Administrator who just doesn't want to have his sleep or his weekend interrupted by an untimely service call caused by a finicky power supply.

Function:

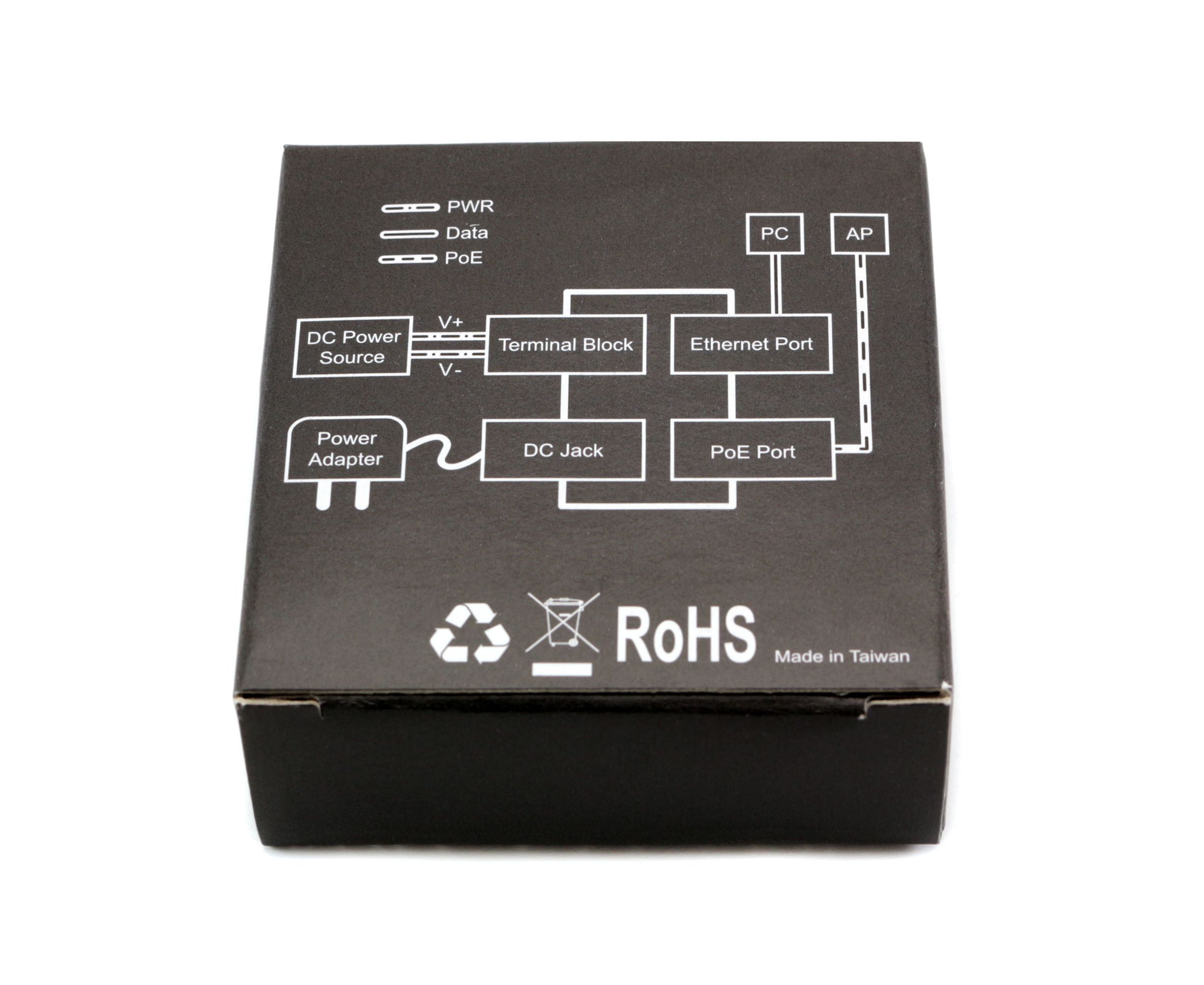

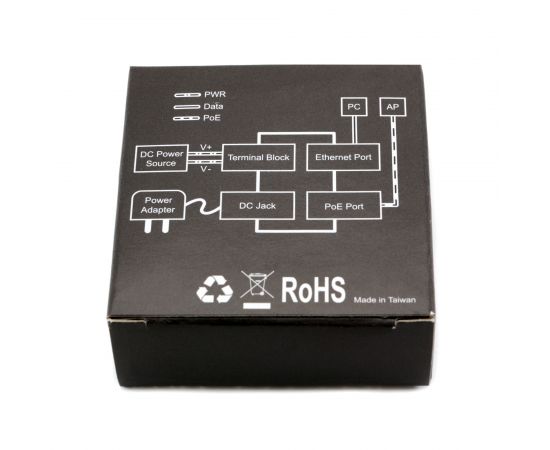

Transform DC through RJ-45 cable PIN# 4,5,7,8, into remote devices such as Wireless AP, IP Phone, IP surveillance Camera, etc. With the terminal block connector can be connected to the UPS allowing redundancy in the power source.

apoe03gs_scheme


Key Features

Input:

    • 1.1 Input Voltage: 5Vdc to 57Vdc, Nominal = 48Vdc

      General Description:

  • 2.1 Operation Temperature: -0 ~ 40
  • 2.2 Storage Temperature: -20 ~ 60
  • 2.3 Operation Humidity: 10% ~ 80% Non-Condensing
  • 2.4 RJ-45 Connector PinOut
  • 2.5 DC Power Plug Diameter: 2.1Ø / 5.5Ø , Length: 12 ± 0.5mm
  • 2.6 DC Power Plug Polarity: Inside (+), Outside (-)

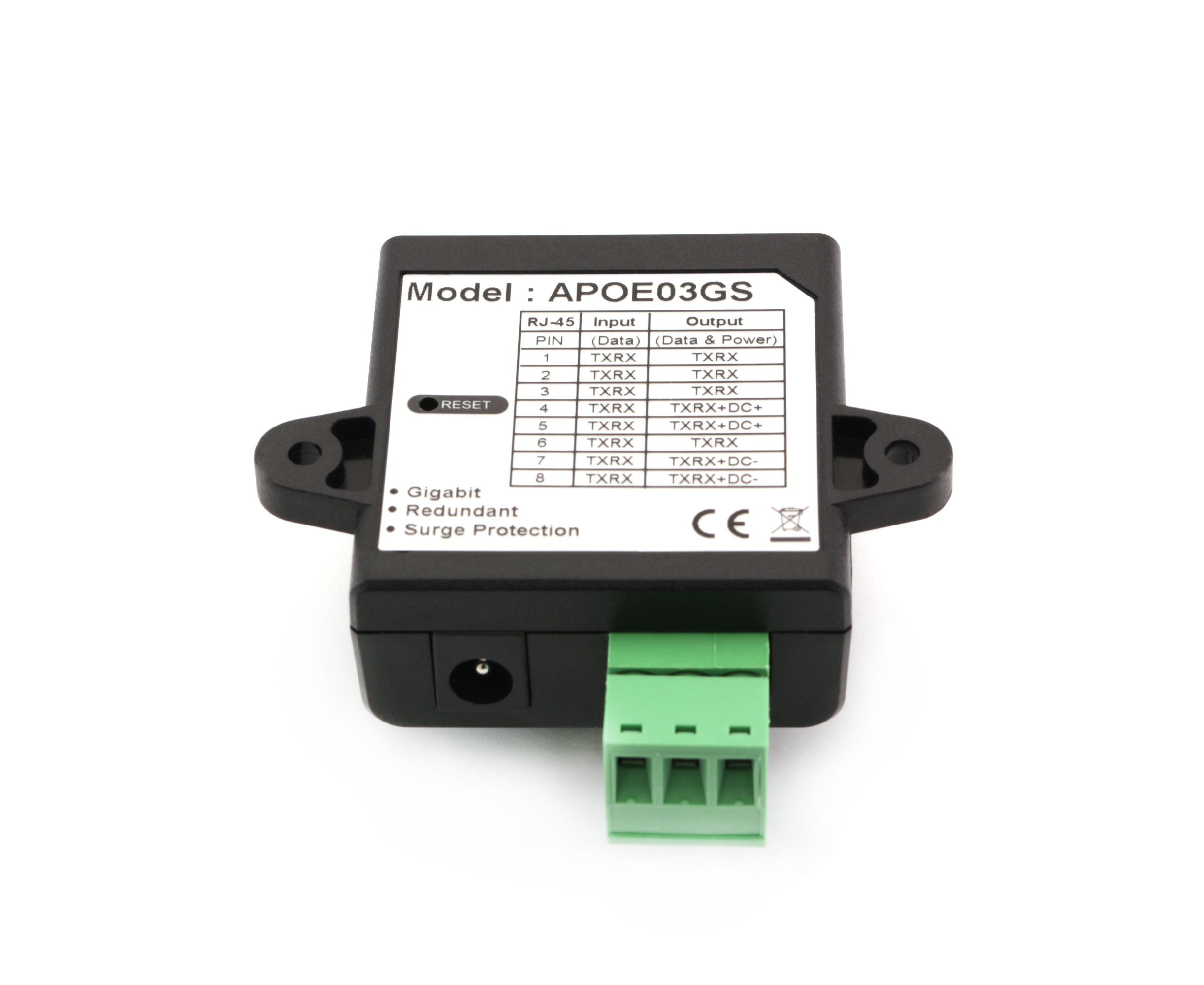

PIN Define



RJ-45 Input ( Data )



RJ-45 Output ( Data & Power )

PIN

Symbol

Symbol

1

TXRX A+

TXRX A+

2

TXRX A-

TXRX A-

3

TXRX B+

TXRX B+

4

TXRX C+

TXRX C+ DC+

5

TXRX C-

TXRX C- DC+

6

TXRX B-

TXRX B-

7

TXRX D+

TXRX D+ DC-

8

TXRX D-

TXRX D- DC-
