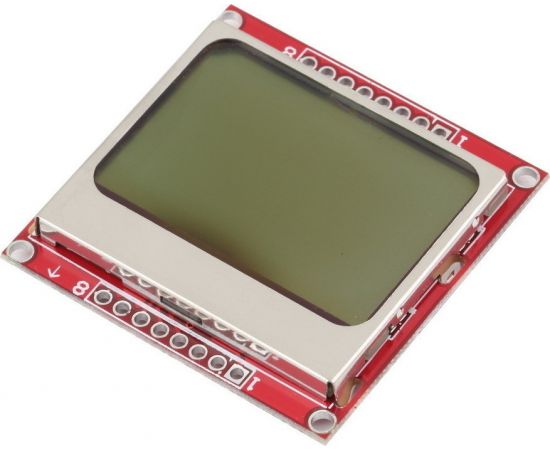

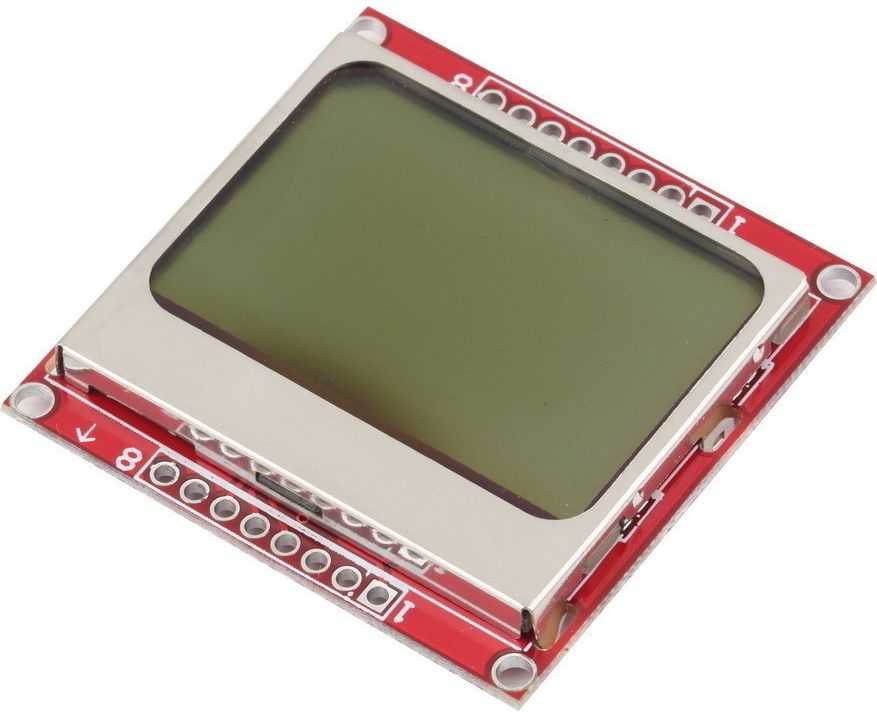

LCD 84x84 Module για Arduino τύπου Nokia 5110
Κωδικός Cableworks: 1256.332

4.46
χωρίς ΦΠΑ 3.60
Μη Διαθέσιμο
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Specification:

Note:

1. "LIGHT" linked with GND, the backlight to be lit.
2. Need you to compress the screen and PCB tighter, might got loose after the delivery.
3 Use a 3.3V controller, otherwise the display could be quite vague.

LCD5110 Module:

Power supply voltage:2.7V-3.3V,5V is OK,but part of the screen becomes black when tested
Data interface level:2.7-5V
Backlight power supply voltage:highest 3.3V
Module size:43.6mm x 43.1mm(width X height)
Installation diameter:2mm

Document for Download:Data


1RST--------- reset
2
CE------------chip selection
3
DC-----------data/commands choice
4
DIN-----------serial data line
5
CLK------------serial Clock Speed
6
3.3V------------VCC
7
LIGHT--------- backlight control terminal
8
GND-----------power negative

Features:

  • 84 X 84 dot matrix LCD,can show 4 lines of characters
  • Use serial interface communicate with the master processor,the number of interface signal line reduced greatly, only 8 signal lines including power and GND.Support different types of MCU,such as the SPI,MCS51 serial mode 0 of AVR.Transfer rate up to 4Mbps,can full speed write display data without waiting time.
  • Can use the conductive glue to connect the module with the printed board,without connecting cable.The metal hooks on the module can fix the module on the printed board,which is very easy to install and replace.
  • LCD controller/driver chip has been bound to LCD chip,the volume of LCD is small
  • Low power supply,the working current in normal situation is lower than 200μA,and has power-down mode.
