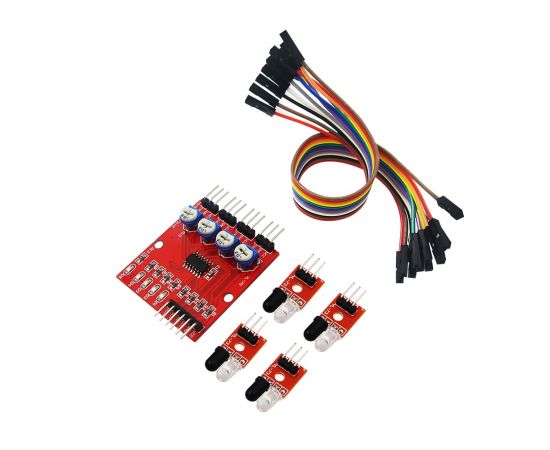

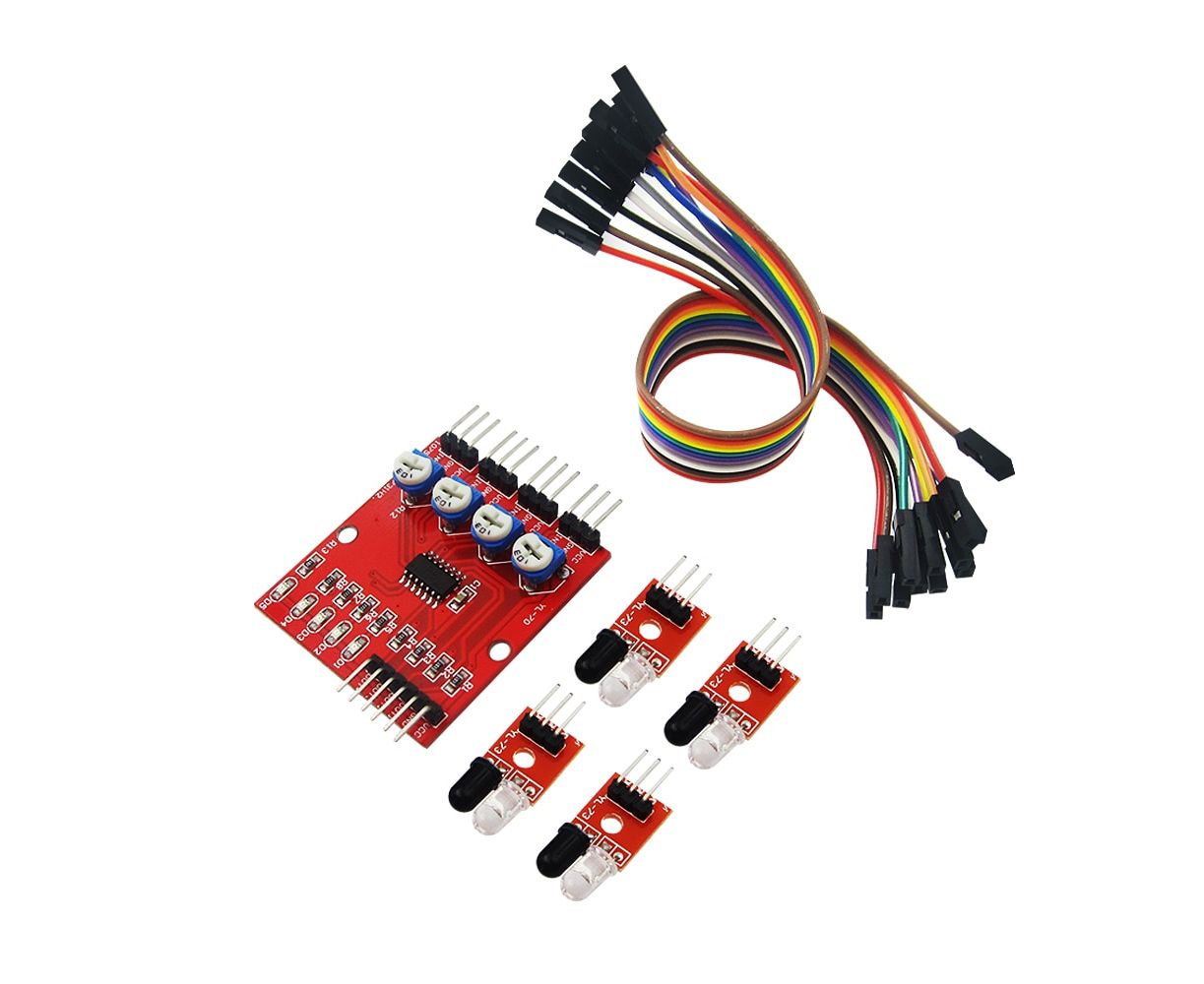

4 Channel Infrared Obstacle Avoidance Module for Arduino
Κωδικός Cableworks: 1116.679

BrandOEM MPNOEM
3.36
χωρίς ΦΠΑ 2.71
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

• Working voltage: DC 3.3V-5V
• Working current: try to choose more than 1A power supply
• Working temperature: - 10oC - +50oC
• Mounting aperture: M3 screws
• Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
• Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)
• Small forward 25mm * 12mm * 12mm (length * width * height)
• Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
• The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
• A Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing .
• Smart car to avoid the cliff , anti- fall.
• Smart car to avoid obstacles
