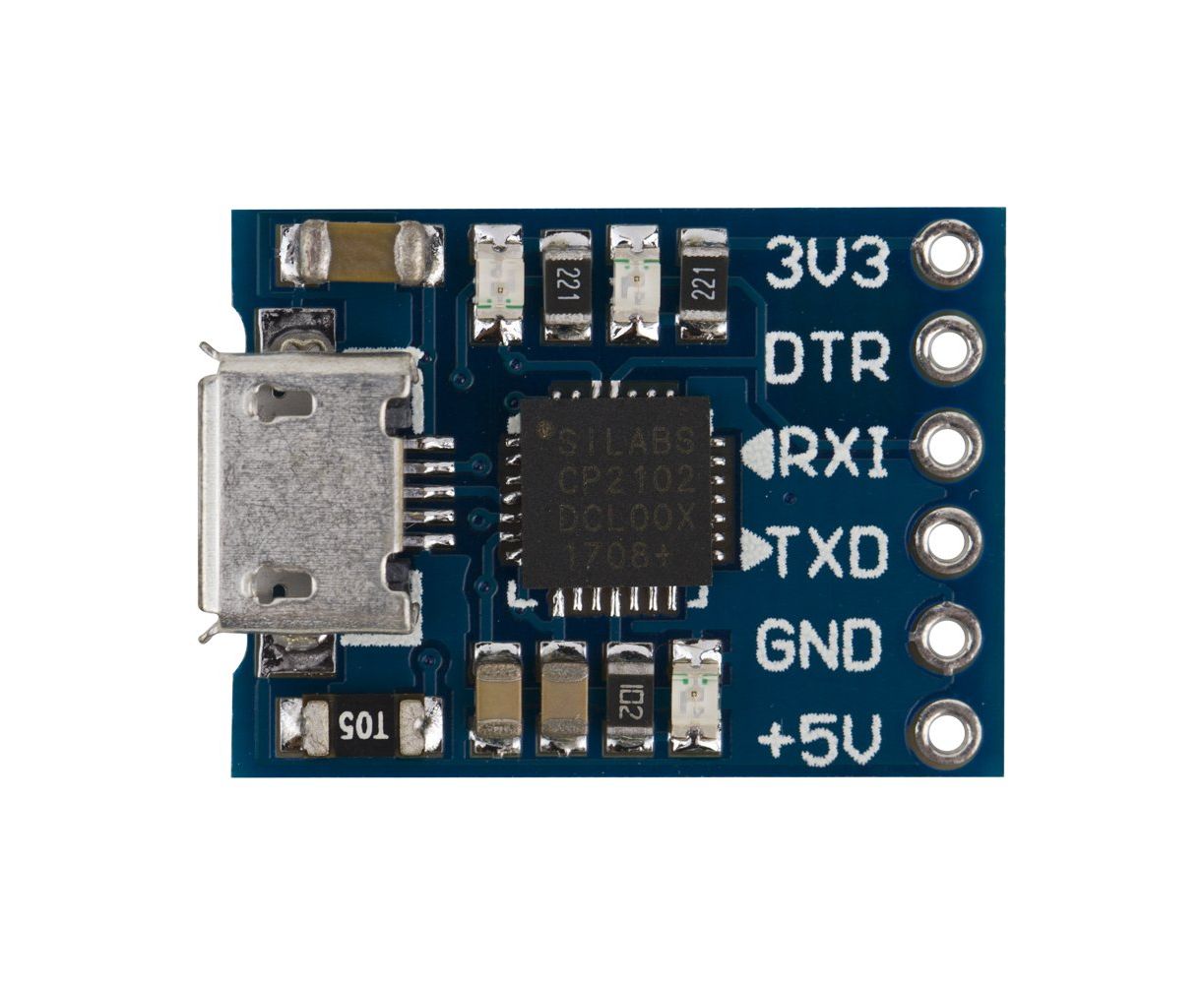

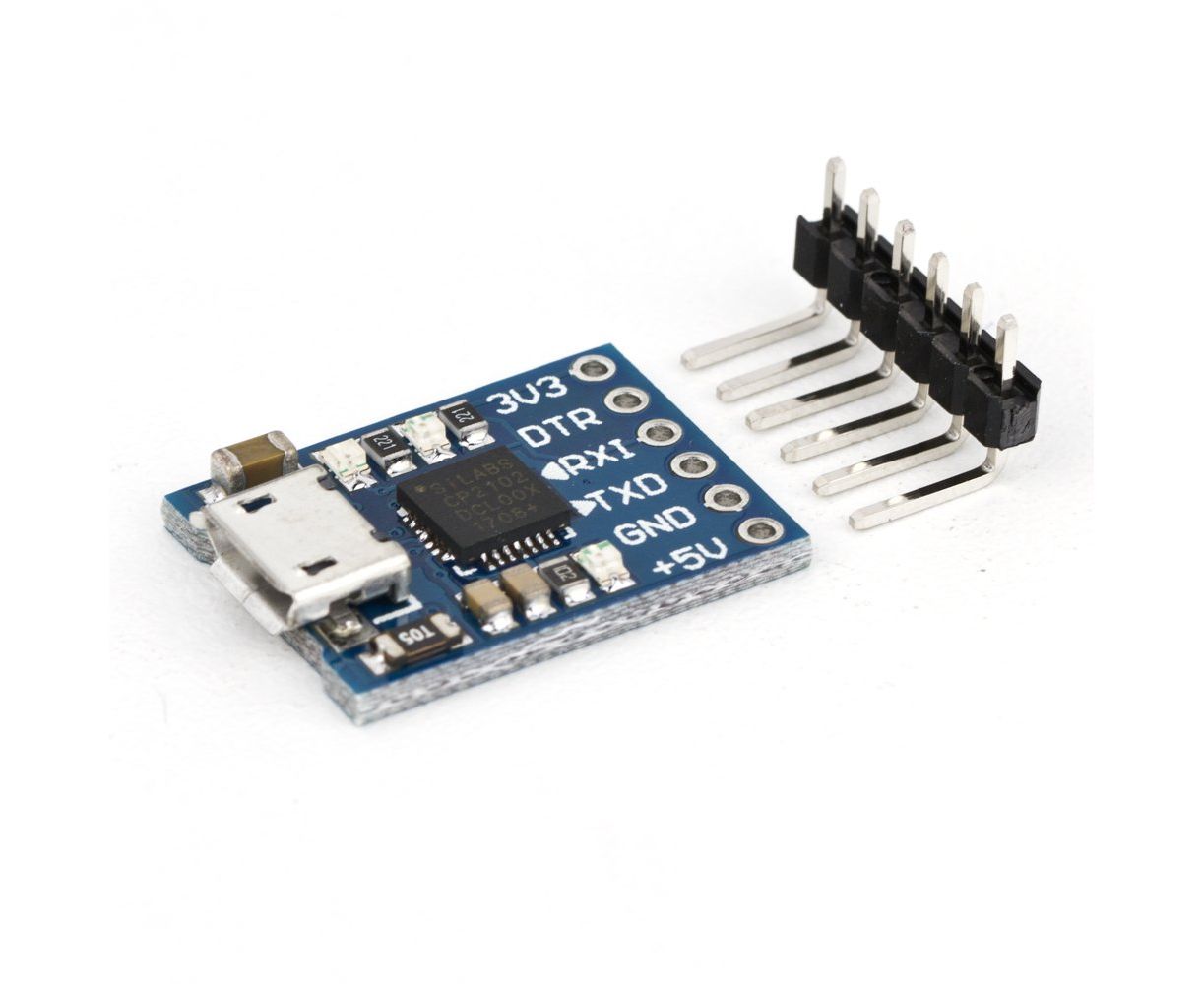

CP2102 microUSB To TTL/Serial 6pin Converter
Κωδικός Cableworks: 1116.672

BrandOEM MPNOEM
3.97
χωρίς ΦΠΑ 3.20
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

  • Original CP2102 chip to generate COM port after installing the driver.
  • MICRO MINI-USB connection standard input connected to a computer USB interface cable with two power 3.3V and 5V voltage output
  • With a resettable fuse. In the event of accidental short, can effectively protect your downloads and computer USB port
  • Onboard status indicator lights transceiver, properly installed rear drive status indicator lit, receiving indicator flashes when communicating with LED running lights.
  • Supports baud rates from 300bps ~ 1Mbps between
  • Communication format support: (1) data bits 5,6,7,8; (2) to support 1.5, 2 stop bits; (3) odd, even, mark, space, none parity
  • Supported operating systems: windows 8.1 / 7 / vista / xp / 98, Mac OS-X / OS-9, Linux
  • USB Block MICRO MINI-USB interface for seat
  • SMD components for the regular company of welding, stable quality, beautiful appearance
  • With DTR trigger signal output can be directly arduino pro mini ATMEGA328P Arduino board download programs and other communication
  • Embedded USB transceiver, without external circuit device
  • Containing clock circuit, no external circuitry is
  • Contains power-on reset circuit
  • On-chip voltage regulator output voltage 3.3V
  • In line with USB2.0 specification requirements
  • SUSPEND pin supports USB Suspend state
  • Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals
  • Supported data formats for 8 data bits, 1 stop bit and parity bits
  • Connotation 512 byte receive buffer and 512 byte transmit buffer
  • Support for hardware or X-ON / X-OFF handshake
