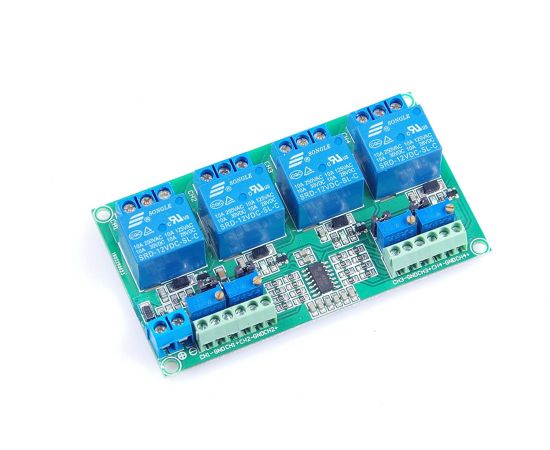

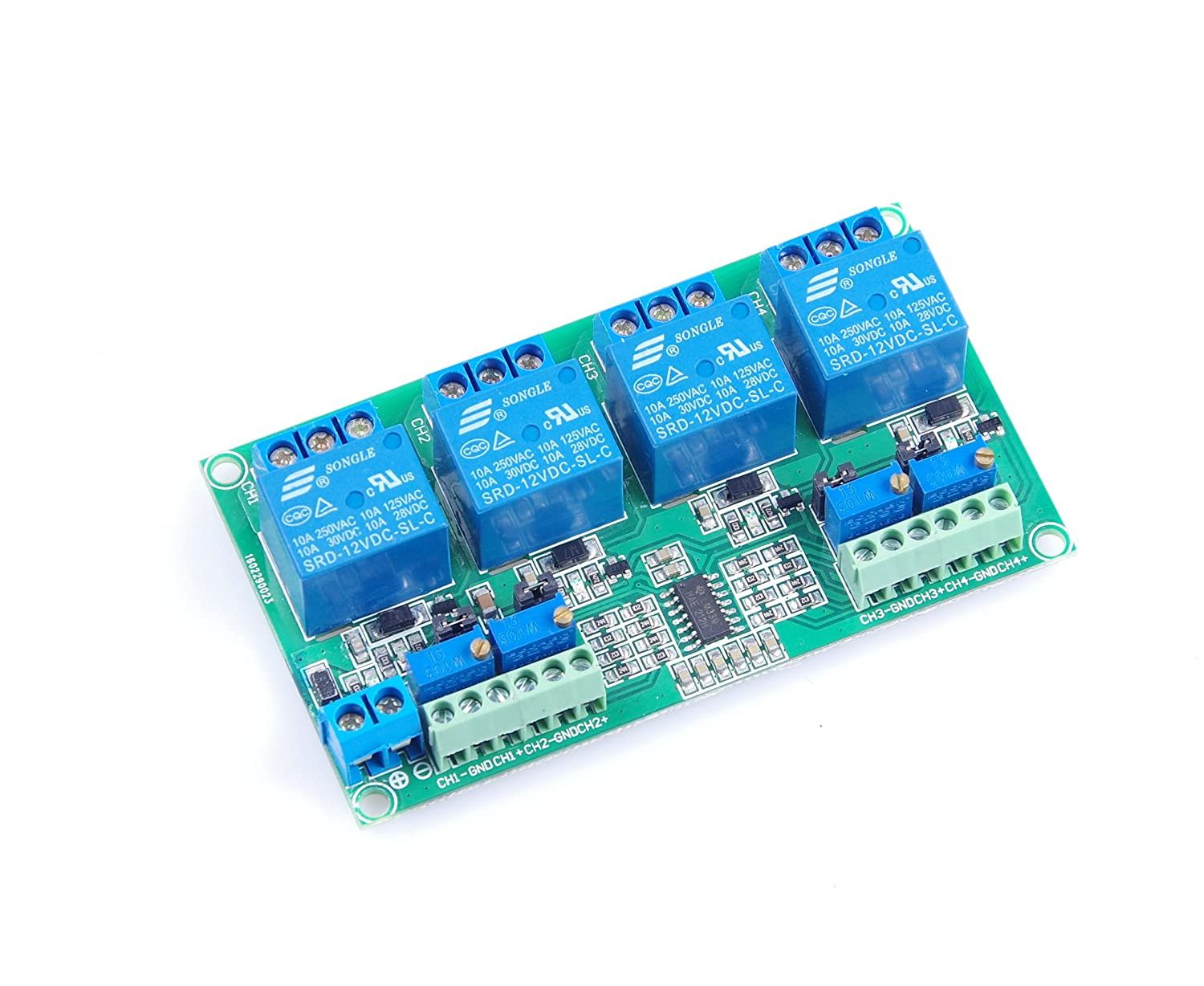

DC 12V 4-Channel Relay - Voltage Comparator LM393 Module
Κωδικός Cableworks: 1215.982

BrandOEM MPNOEM
32.24
χωρίς ΦΠΑ 26.00
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

  • Working current (relay pulls in full): DC12V 350mA
  • When the relay does not work: <2mA
  • Features: By comparing the two voltage control circuit is turned on or off
  • Precision resolution of 0.1V
  • Size: 93 * 53 * 20mm (L * W * H).

Additional Information

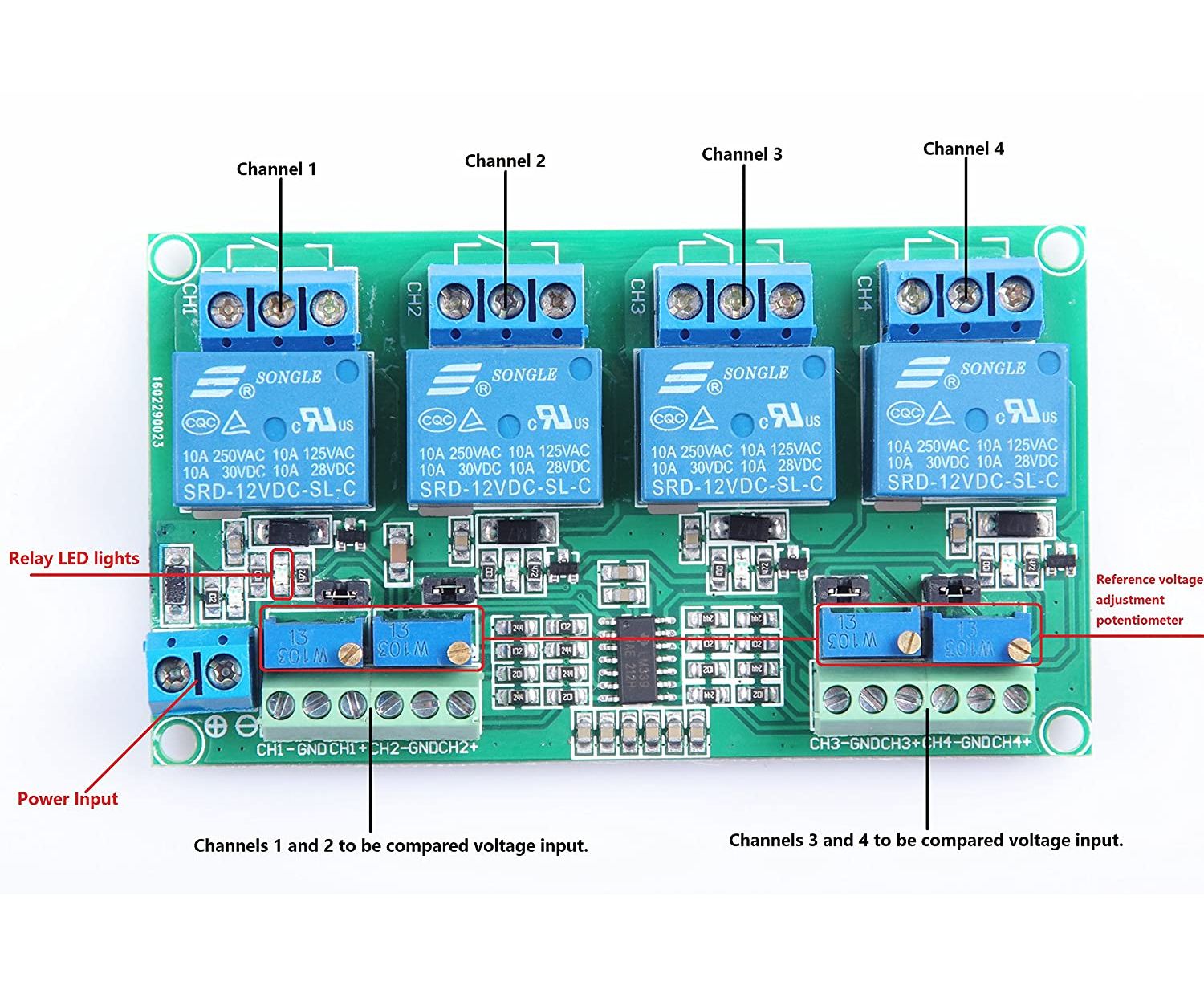

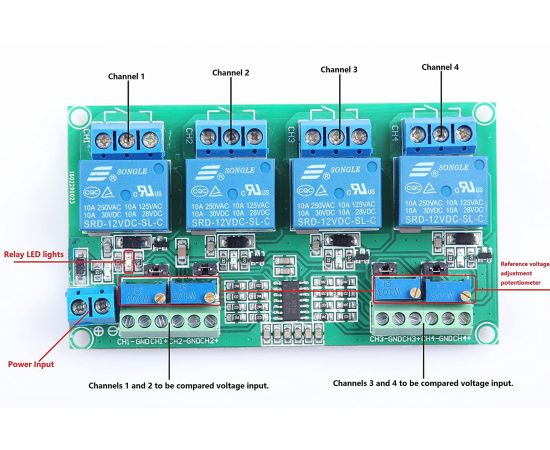

Function: the setting voltage reference input of a voltage and on the module (reference voltage can be set through the adjustable resistor) the contrast, when the input voltage is greater than the reference voltage, the relay is closed, when the input voltage is less than the reference voltage, relay.
Function two: two input voltage signal respectively to compare 10 and 12, when the voltage signal is greater than the 12 voltage signal 10, the relay is closed, when the voltage signal is 12 less than the voltage signal 10, relay.

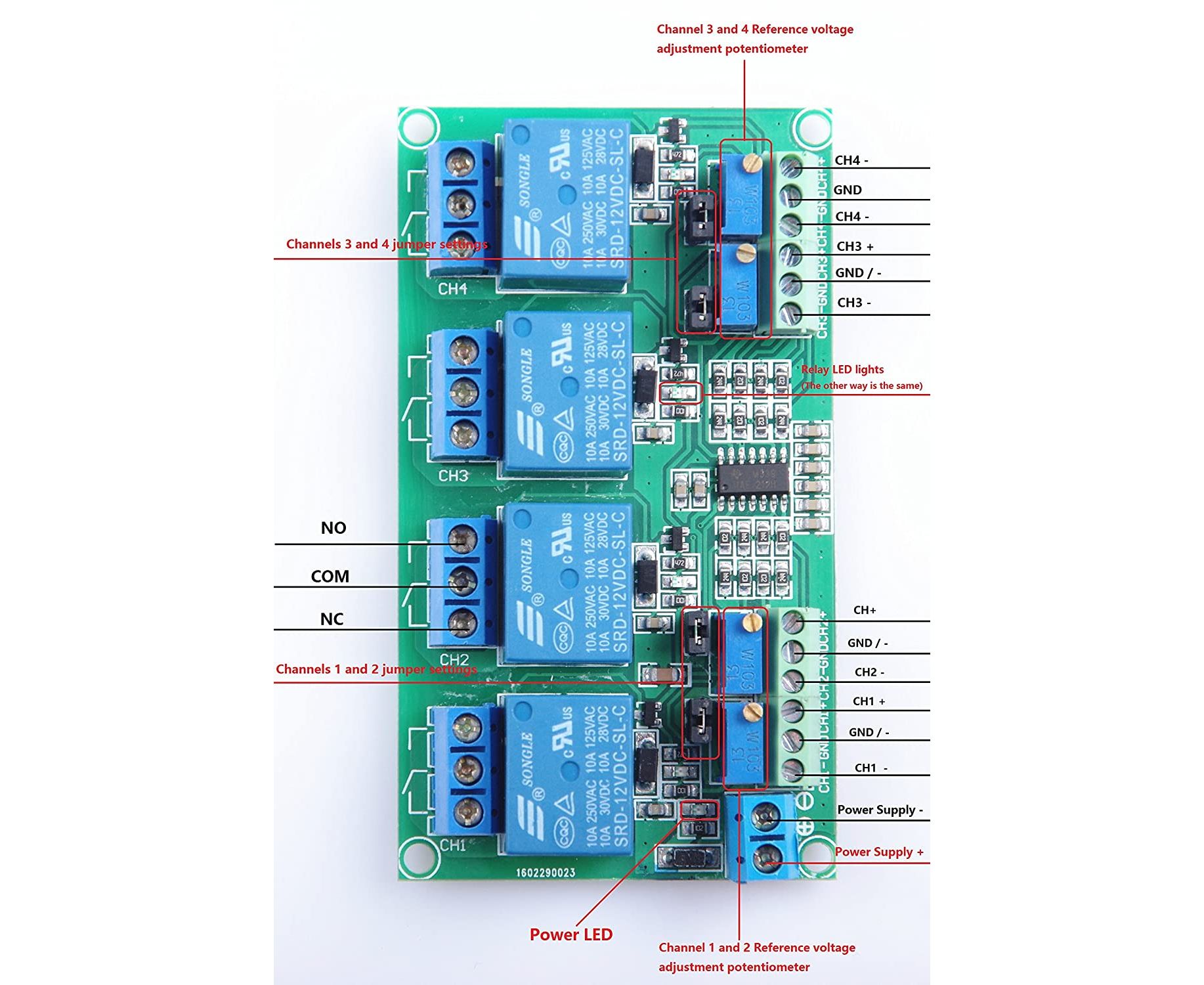

Three features: the setting voltage reference input of a voltage and on the module (reference voltage can be set through the adjustable resistor) the contrast, when the input voltage is less than the reference voltage, the relay is closed (6-5 closed, 7-6 disconnected); when the input voltage is less than the reference voltage, relay. (a contrary to function)
Reference voltage input voltage through precision resistor divider to obtain the reference voltage module, input voltage value determines the range of the reference voltage value, included in the input voltage is 12V, then the reference voltage adjustable range is 0-12V
Module purpose: automobile current modification circuit, industrial equipment, laboratory testing, application testing circuit.
Working current: 350mA
