Shelly 2PM Gen3 (S3SW-002P16EU)
Κωδικός Cableworks: 1337.014

€33.36

χωρίς ΦΠΑ €26.90

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Επιστροφές εντός 14 ημερών - Υπο Προϋποθέσεις
ΕΛΤΑ COURIER απο 1,77€ + ΦΠΑ
ACS COURIER απο 2,00€ + ΦΠΑ
ΠΡΑΚΤΟΡΕΙΟ για πάνω απο 25kg - Τρίτες και Πέμπτες - Χρέωση Παραλήπτη
Παραλαβή από έδρα

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

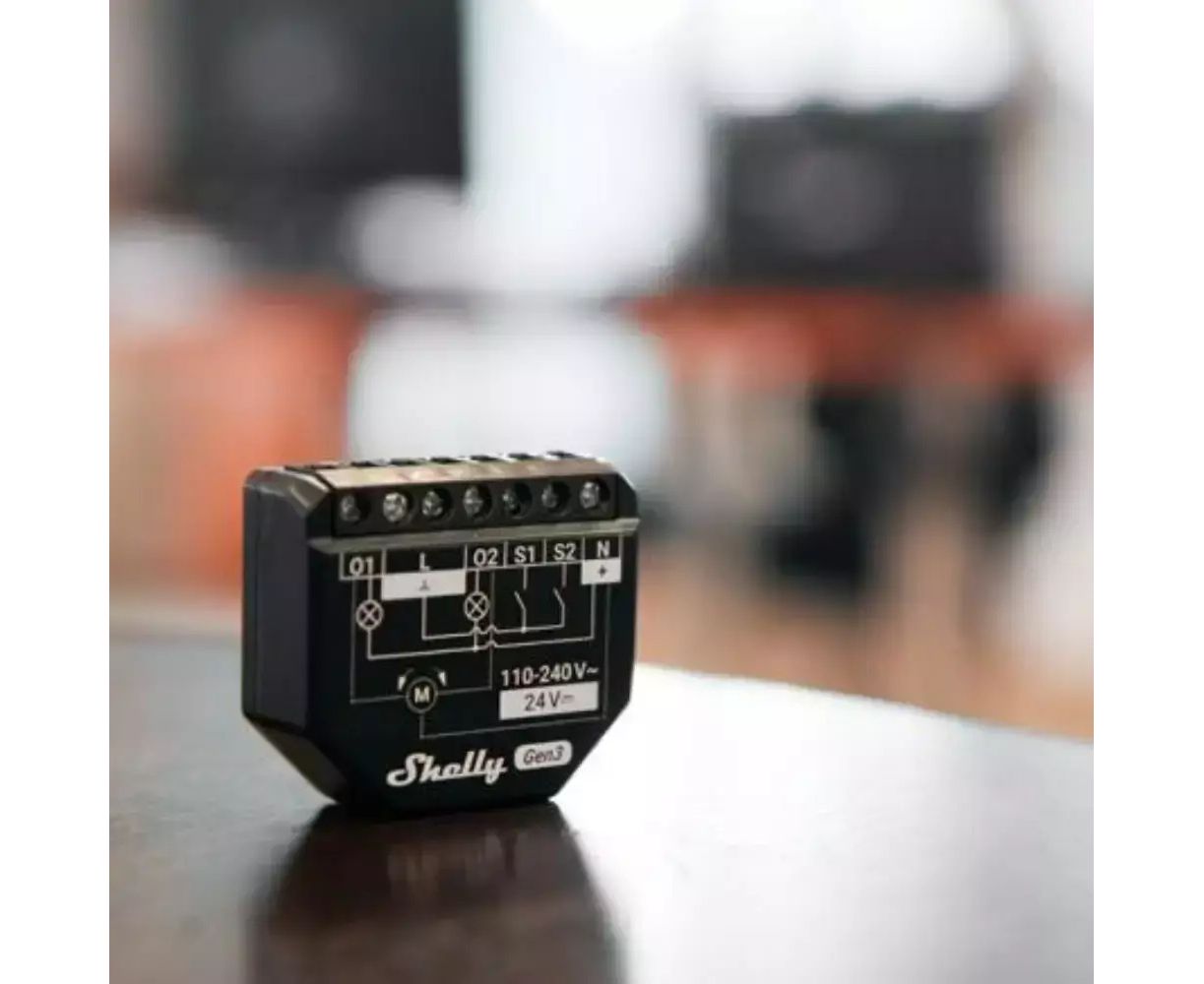

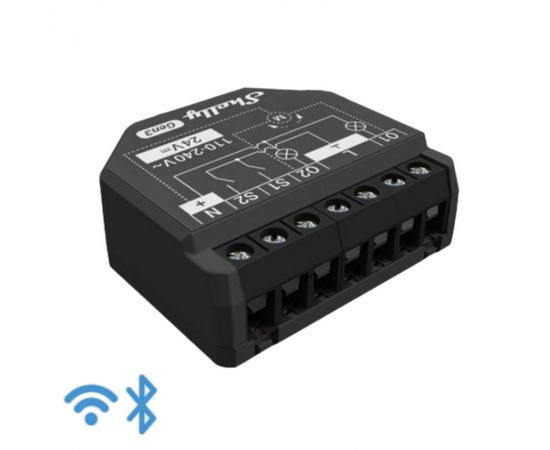

Shelly 2PM Gen3

Έξυπνος διακόπτης Wi-Fi 2 καναλιών με μέτρηση ισχύος και λειτουργία ρολού, 16A συνολικό ρεύμα (18A κορυφή).

Κατάλληλος για έλεγχο και παρακολούθηση δύο ανεξάρτητων φορτίων στην ίδια φάση ή για αυτοματισμό ρολών και αμφίδρομων κινητήρων.
2 κανάλια στην ίδια φάση.
Μέτρηση ισχύος σε κάθε κανάλι σε πραγματικό χρόνο.
Λειτουργία ρολού (cover mode) για ρολά, περσίδες, τέντες, πύλες και άλλους αμφίδρομους κινητήρες.
Ρύθμιση θέσης και γωνίας πηχών για έλεγχο φωτεινότητας.
Wi-Fi και Bluetooth.
Λειτουργία Wi-Fi Range Extender & BLE Gateway.
Επεξεργαστής ESP-Shelly-C38F με 8MB Flash.
Υποστήριξη scripting, webhooks, MQTT, WebSocket, HTTPS, UDP και TLS.
Υποστήριξη KNXnet/IP.
Δεν απαιτείται hub.
Λειτουργεί τοπικά ή μέσω Shelly Smart Control και πλατφορμών αυτοματισμού.

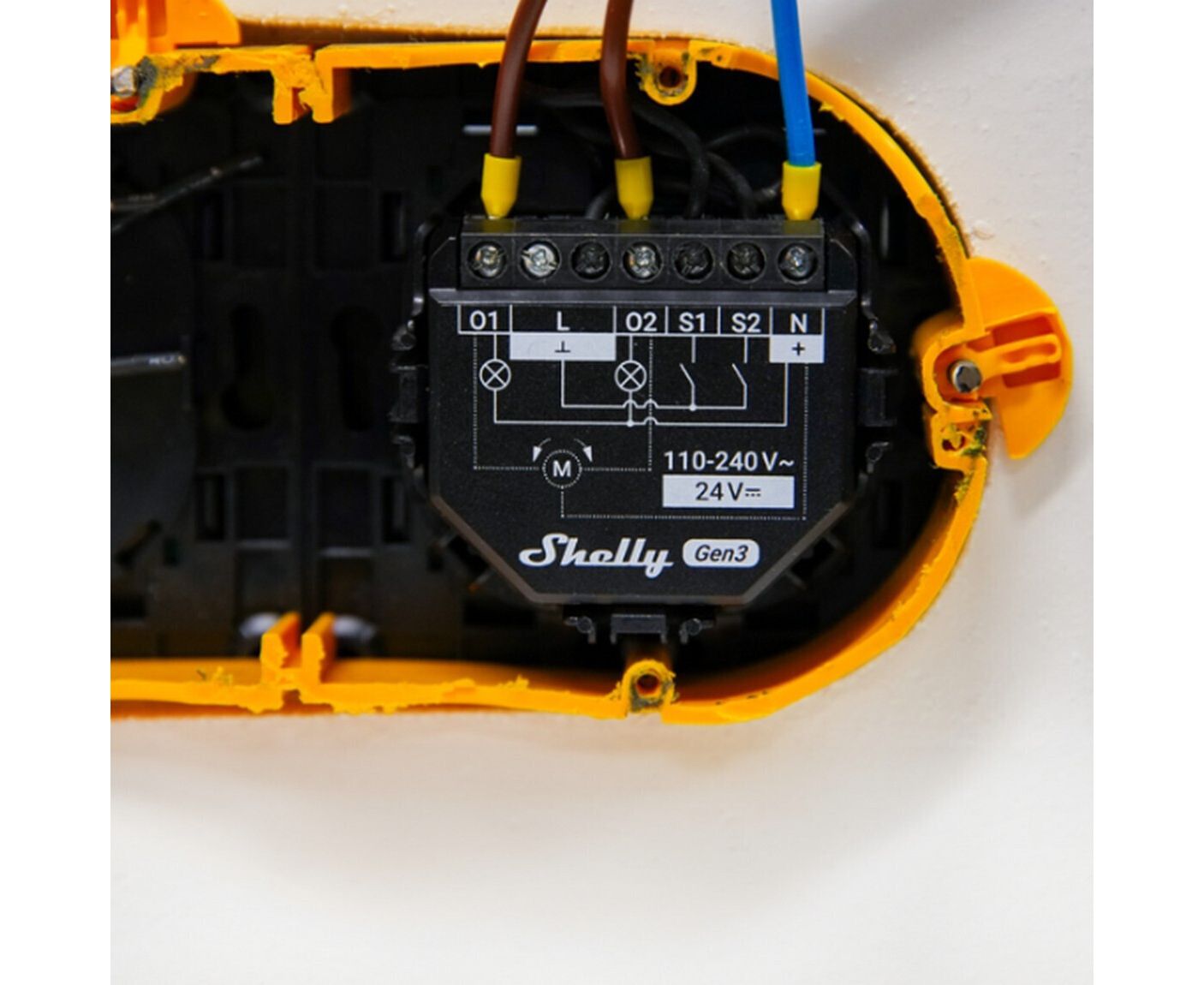

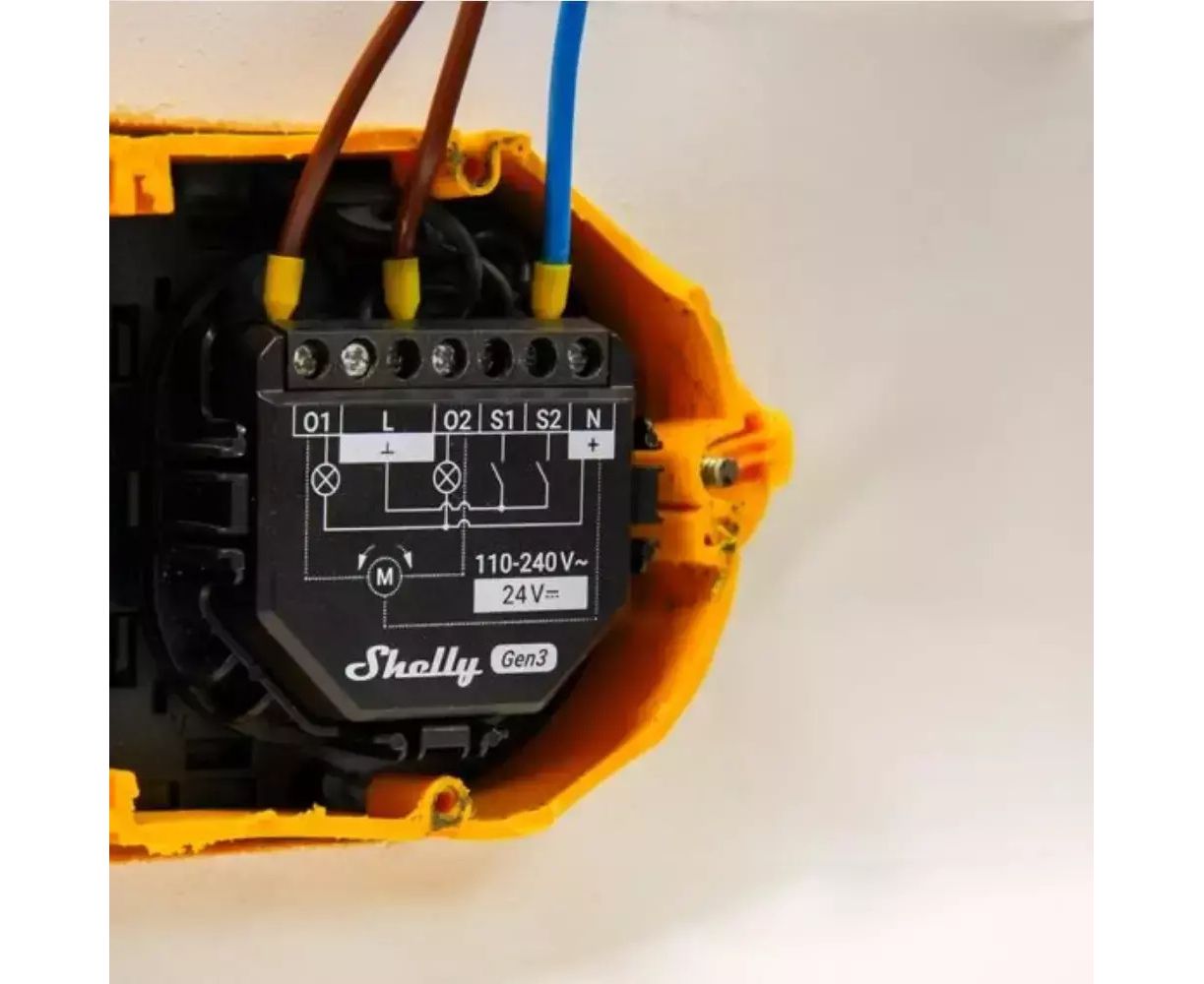

Κατάλληλο για εγκατάσταση πίσω από διακόπτες ή πρίζες, καθώς και σε περιορισμένους χώρους εγκατάστασης.

Specifications

Quantity	Value
Physical
Size (HxWxD):	37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight:	30 g / 1.06 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall box
Shell material:	Plastic
Shell color:	Black
Terminals color:	Black
Environmental
Ambient working temperature:	-20°C to 40°C / -5°F to 105°F
Humidity:	30% to 70% RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	110 - 240 V~ / 24 V⎓ ±10%
Power consumption:	< 1.4 W
External protection:	Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Output circuits ratings
Max. switching voltage:	240 V~ 30 V⎓
Max. switching current AC:	10 A (per channel), 16 A (total), 18 A (total peak)
Max. switching current DC:	10 A
Sensors, meters
Voltmeter (AC):	Yes
Ammeter (AC):	Yes
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP-Shelly-C38F
Flash:	8MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

Basic wiring diagrams

Dual-channel switch mode, AC power supply	Dual-channel switch mode, DC power supply
Cover mode

Legend

Terminals		Wires
O1, O2:	Load circuit output terminals	N:	Neutral wire
L:	Live terminal (110-240 VAC)	L:	Live wire (110-240 V~)
S1, S2:	Switch input terminals	+:	24 V⎓ positive wire
S1, S2	Switch input terminals	-	24 V⎓ negative wire
+:	24V⎓ positive terminal
Ʇ:	24V⎓ negative terminal

Troubleshooting

Ensure that the device is properly powered:
- Check power cables, outlets, and any power indicators on the device.
Inspect Connections:
- Verify that all connections, including cables and wiring, are secure and properly seated. Loose connections can lead to functionality issues.
Review Device Settings:
- If applicable, check and review the device settings. Ensure that configurations are correct and match your intended use.
Update Firmware/Software:
- Check if there are any available firmware or software updates for the device. Keeping the device up-to-date can resolve known issues and improve performance.
Restart or Reboot:
- Sometimes, a simple restart can resolve temporary glitches. Turn off the device, wait a few seconds, and then power it back on.
Check Network Connection:
- If the device is connected to a network, ensure that the network settings are correct. Test the network connection and consider restarting routers or switches if needed.
Inspect Physical Components:
- Physically inspect the device for any signs of damage, overheating, or unusual behavior.
Check Compatibility:
- Ensure that the device is compatible with other components in your system, including hardware and software. Incompatibility issues can lead to malfunctions.
Monitor Environmental Factors:
- Consider environmental factors such as temperature and humidity.
Inspect Power Supply Quality:
- Poor power quality, including voltage spikes or fluctuations, can affect device performance. Consider using a surge protector or voltage regulator if needed.
