Shelly Pro Dimmer 2PM (SPDM-002PE01EU)
Κωδικός Cableworks: 1337.013

€80.48

χωρίς ΦΠΑ €64.90

Μη Διαθέσιμο

Ειδοποίηση όταν το προϊόν είναι ξανά διαθέσιμο

Αποστολές & Επιστροφές

Επιστροφές εντός 14 ημερών - Υπο Προϋποθέσεις
ΕΛΤΑ COURIER απο 1,77€ + ΦΠΑ
ACS COURIER απο 2,00€ + ΦΠΑ
ΠΡΑΚΤΟΡΕΙΟ για πάνω απο 25kg - Τρίτες και Πέμπτες - Χρέωση Παραλήπτη
Παραλαβή από έδρα

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

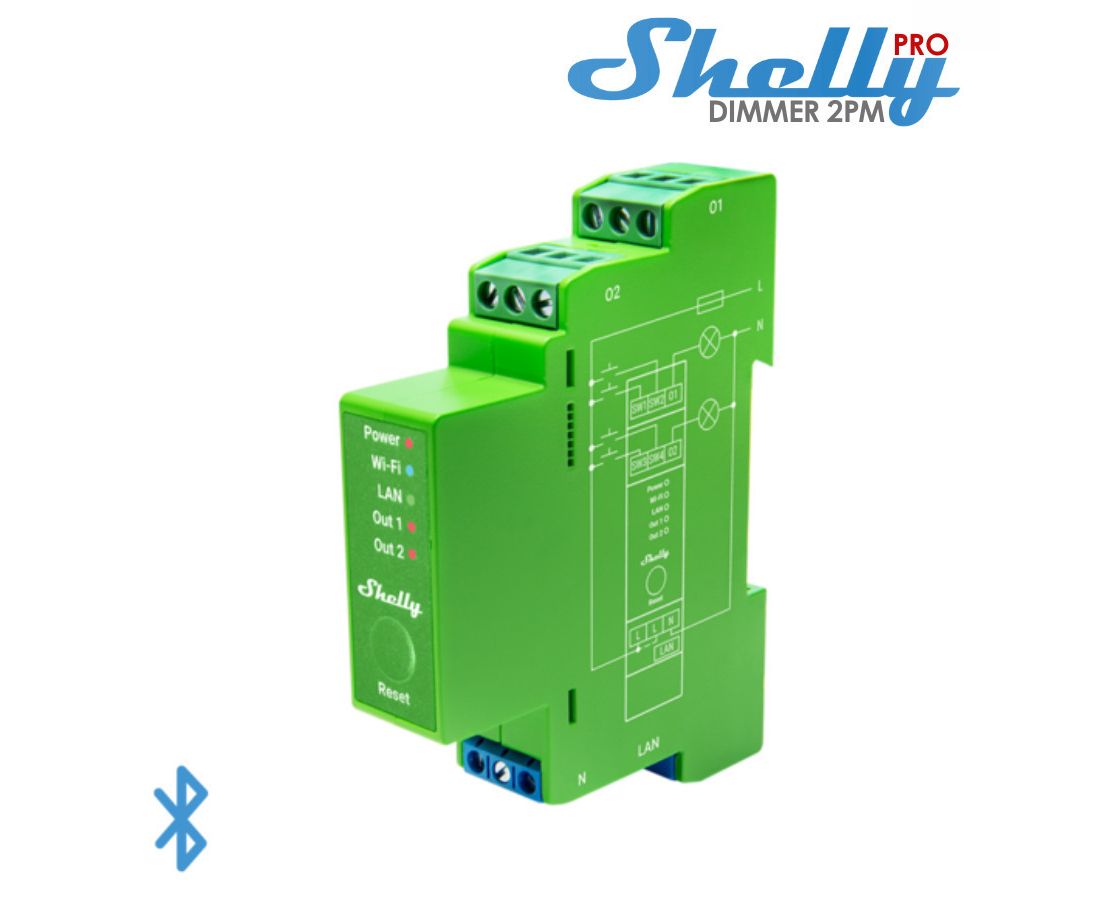

Shelly Pro Dimmer 2PM

Επαγγελματικός έξυπνος ροοστάτης ράγας DIN, 2 καναλιών, με παρακολούθηση ισχύος ανά κανάλι.

Σύνδεση LAN, Wi-Fi και Bluetooth.
Ενσωματωμένη μέτρηση ισχύος για κάθε κανάλι ξεχωριστά.
Τοπική αποθήκευση δεδομένων μέσω Shelly Smart Control.
Λειτουργία νύχτας για χαμηλότερη φωτεινότητα.
Αυτόματη βαθμονόμηση dimming.
Ρυθμιζόμενη ελάχιστη και μέγιστη φωτεινότητα ανά κανάλι.
Ρυθμιζόμενος ρυθμός εξασθένισης και χρόνος μετάβασης.
Λειτουργία εισόδου διακόπτη ή μπουτόν για κάθε κανάλι (μονό ή διπλό).
Χρήση με υπάρχοντες μηχανικούς διακόπτες.
Δεν απαιτείται hub.
Συμβατό με Alexa, Home Assistant και πλατφόρμες αυτοματισμού.
Wi-Fi Range Extender και BLE Gateway.
Επεξεργαστής ESP32 για άμεση απόκριση.
Υποστήριξη scripting, webhooks, MQTT, WebSocket, HTTPS, UDP και TLS.
Κατάλληλο για εγκατάσταση σε ηλεκτρικό πίνακα σε νέες ή επαγγελματικές εγκαταστάσεις.

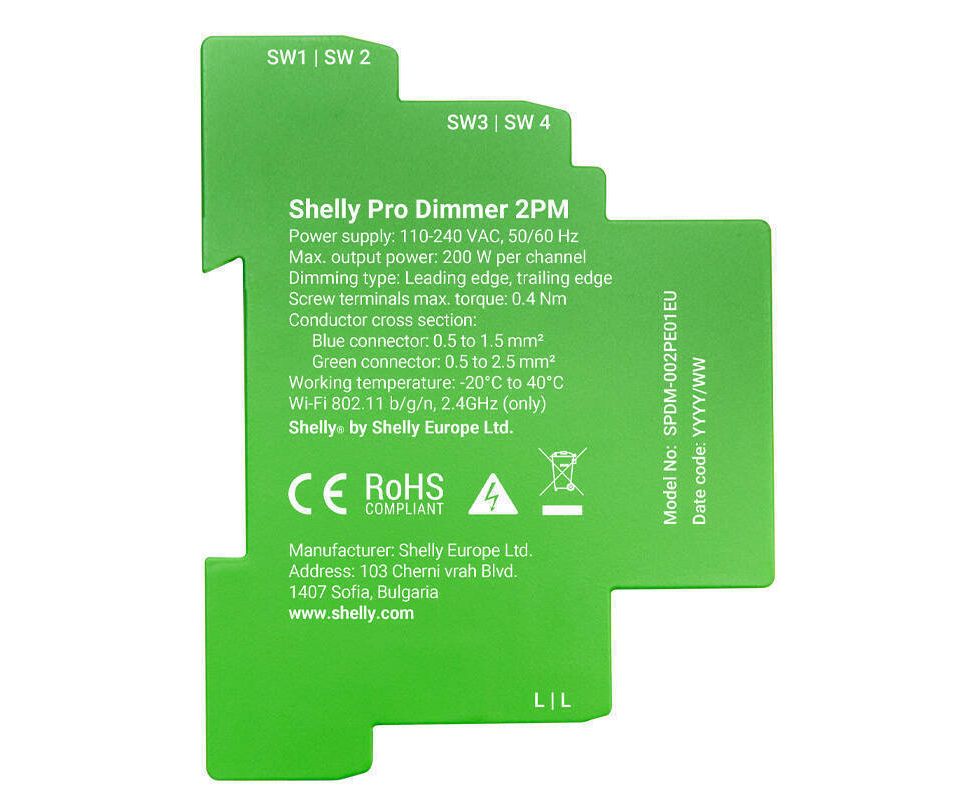

Specifications

Quantity	Value
Physical
Size (HxWxD):	94x19x69 mm / 3.70x0.75x2.71 in
Weight:	75 g / 2.7 oz
Screw terminals max torque:	0.4 Nm / 3.54 lbin
Conductor cross section:	0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connector) (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (blue connector)
Mounting:	DIN rail
Shell material:	Plastic
Shell color:	Lime
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	110 - 240 V~ 50/60 Hz
Power consumption:	< 2 W
External protection:	10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
Dimming type:	Trailing edge
Output circuits ratings
Max. output power:	200 W per channel
Sensors, meters
Voltmeter (AC):	Yes
Ammeter (AC):	Yes
Power and energy meters:	Yes
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2401 - 2483 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP32-D0WDQ6
Flash:	8 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

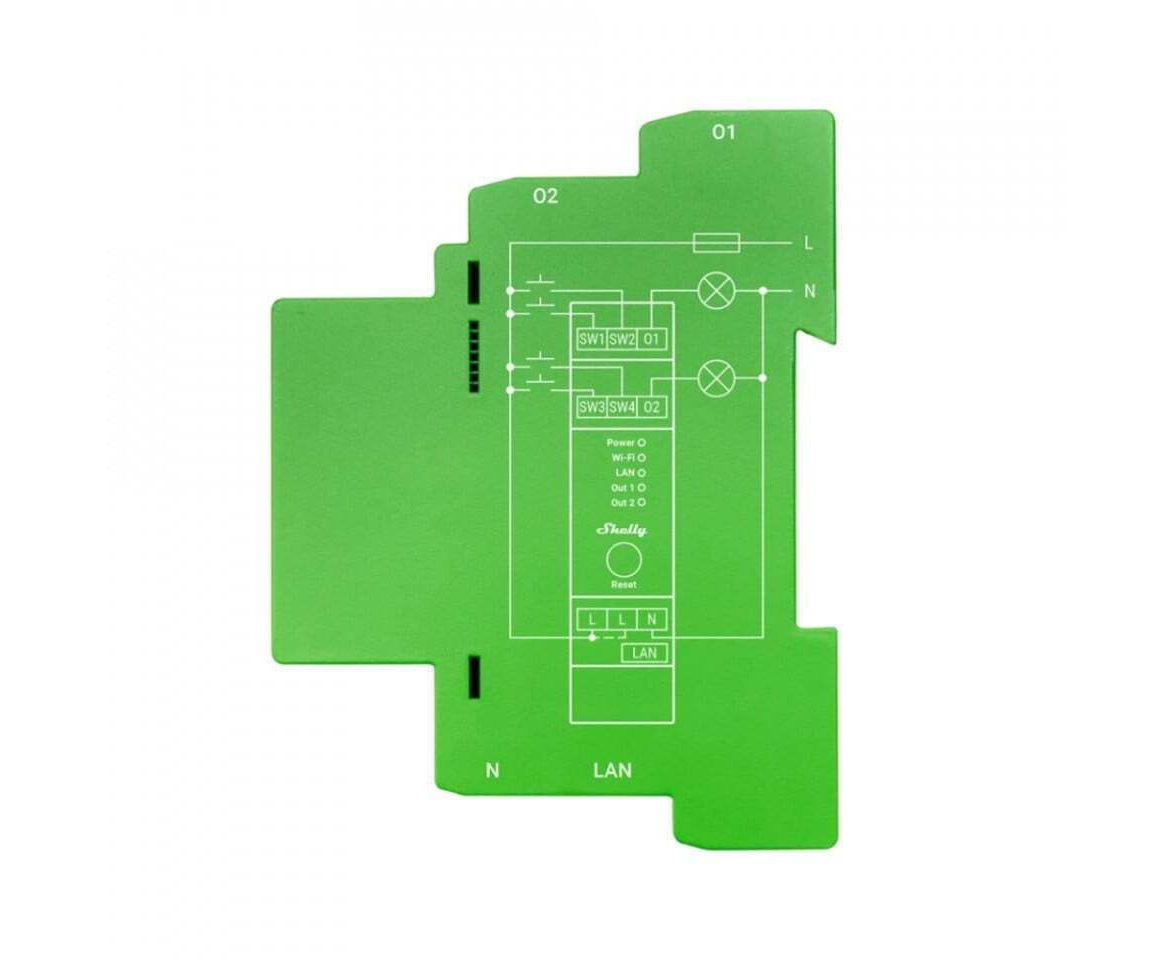

Basic wiring diagrams

Legend

Terminals		Wires
SW1, SW2	Switch/button input terminals controlling O1	L	Live (110-240 V) wire
SW3, SW4	Switch/button input terminals controlling O2	N	Neutral wire
O1, O2	Load circuit output terminals
L	Live (110-240 V) terminals
N	Neutral terminal

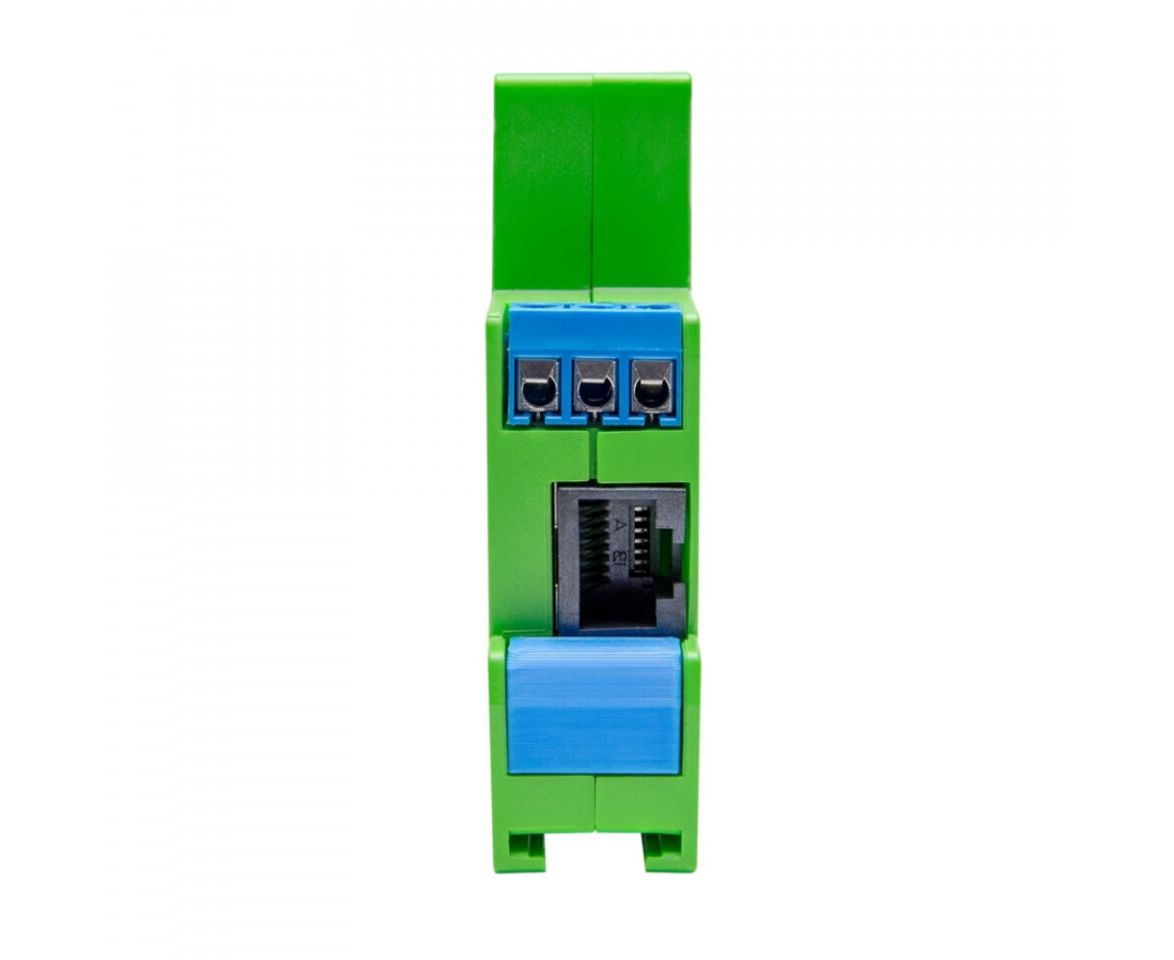

LAN	Local Area Network RJ 45 connector

Troubleshooting

Verify both the working voltage of the device and the supplied voltage of your power grid:
- Installing the device with a non-recommended power supply may result in malfunction.
Ensure that the device is properly powered:
- Check power cables, outlets, and any power indicators on the device.
Inspect Power Supply Quality:
- Poor power quality, including voltage spikes or fluctuations, can affect device performance. Consider using a surge protector or voltage regulator if needed.
Inspect Connections:
- Verify that all connections, including cables and wiring, are secure and properly seated. Loose connections can lead to functionality issues.
Inspect Physical Components:
- Physically inspect the device for any signs of damage or overheating.
Monitor Environmental Factors:
- Consider environmental factors such as temperature and humidity.
Check Load Compatibility
- If applicable, check the load and ensure it complies with the list of supported loads.
Check Network Connection:
- If the device is connected to a network, ensure that the network settings are correct. Test the network connection and consider restarting routers or switches if needed.
Check Compatibility:
- Ensure that the device is compatible with other components in your system, including hardware and software. Incompatibility issues can lead to malfunctions.
Review Device Settings:
- If applicable, check and review the device settings. Ensure that configurations are correct and match your intended use.
Restart or Reboot:
- Sometimes, a simple restart can resolve temporary glitches. Turn off the device, wait a few seconds, and then power it back on.
Update Firmware/Software:
- Check if there are any available firmware or software updates for the device. Keeping the device up-to-date can resolve known issues and improve performance.
