Grandstream GWN7670 Dual-Band 2x2:2 MIMO Wi-Fi 7 Indoor Access Point with DL/UL OFDMA Technology and PoE+ Support

Κωδικός Cableworks: 1015.127

Grandstream GWN7670 is a new generation enterprise-grade Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks. It offers dual-band 2x2:2 MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. The GWN7670 improves bandwidth utilization and anti-interference ability with multi-RU and Preamble Puncturing technology. With 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer rates. MLO technology optimizes spectrum resource utilization to ensure a smooth experience for every user. To ensure easy installation and management, the GWN7670 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface The GWN7670 is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, BT location with BLE 5.3, 256 concurrent clients per AP and 2 x 2.5 Gigabit network ports with PoE+, GWN7670 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Key Features & Benefits:

• 3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
• Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
• 3 Year Warranty

Specifications:

• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Antennas:
  - 5 single frequency antennas
  - 2.4GHz x 2, gain 3.5dBi
  - 5GHz x 2, gain 5.5dBi
  - BT gain 3.5dBi
• Wi-Fi Data Rates:
  5G:
  - IEEE 802.11be: Up to 2882 Mbps
  - IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
  - IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
  - IEEE 802.11n: 6.5 Mbps to 600 Mbps
  - IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  2.4G:
  - IEEE 802.11be: Up to 688 Mbps
  - IEEE 802.11ax: 7.3 Mbps to 574 Mbps
  - IEEE 802.11n: 6.5Mbps to 300 Mbps
  - IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  - IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands:
  - 2.4GHz Radio: 2400 - 2483.5 MHz
  - 5GHz Radio: 5150 - 5895 MHz
• Channel Bandwidth:
  - 2.4G: 20 and 40 MHz
  - 5G: 20, 40, 80, and 160 MHz​
• Wi-Fi and System Security:
  - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
  - WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures
  - Unique security certificate and random default password per device
• MIMO: 2x2:2 2.4GHz, 2x2:2 5GHz
• Coverage Range: Up to 175 meters
• Maximum TX Power: 5G: 26dBm, 2.4G: 26dBm
• SSIDs: 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
• Concurrent Clients: 256

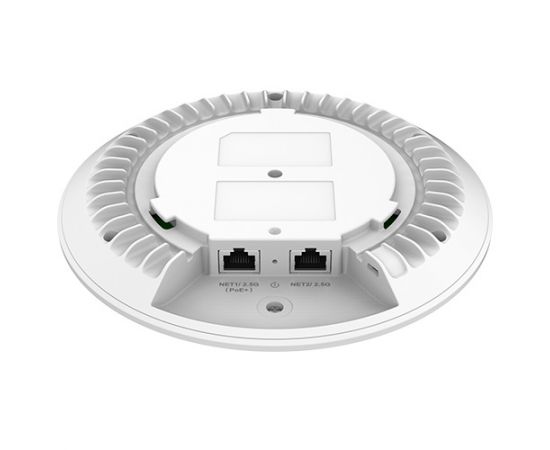

• Network Interface Ports (WAN/LAN):
  - 1x Ethernet RJ45 port (2.5Gbps) supporting PoE+
  ​- 1x Ethernet RJ45 port (2.5Gbps)
• Power and Green Energy Efficiency:
  - PoE/PoE+ 802.3af/at
  - Maximum Power Consumption: 14.5W
• Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
• Bluetooth®: BLE 5.3
• Mounting: Indoor wall mount or ceiling mount, kits included
• LEDs: 1 tri-color LED for device tracking and status indication
• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management:
  - Embedded controller can manage up to 50 local GWN APs
  - GDMS Networking offers a free cloud management platform for unlimited GWN APs
  - GWN Manager offers premise-based software controller for up to 3,000 GWN APs
• Environmental:
  - Operation: 0°Cto 45°C
  - Storage: -30°C to 60°C
  - Humidity: 10% to 90% Non-condensing
• Physical:
  - Unit Dimension(LxWxH): 185 x185 x 44.5mm
  - Unit Weight: 527g
  - Entire Package Dimension(LxWxH): 228.5 x 220 x79mm
  - Entire Package Weight: 877g
• Compliance: FCC, CE, RCM, IC

Package Contents:

• GWN7670 Wi-Fi 7 Wireless AP
• 1x Mounting Bracket
• 1x Ceiling Mounting Bracket
• 3x M3 NUT
• 3x Screw (PM 3 x 50)
• 3x Screw (PA 3.5 x 20)
• 3x Plastic Expansion Bolt
• Quick Start Guide
