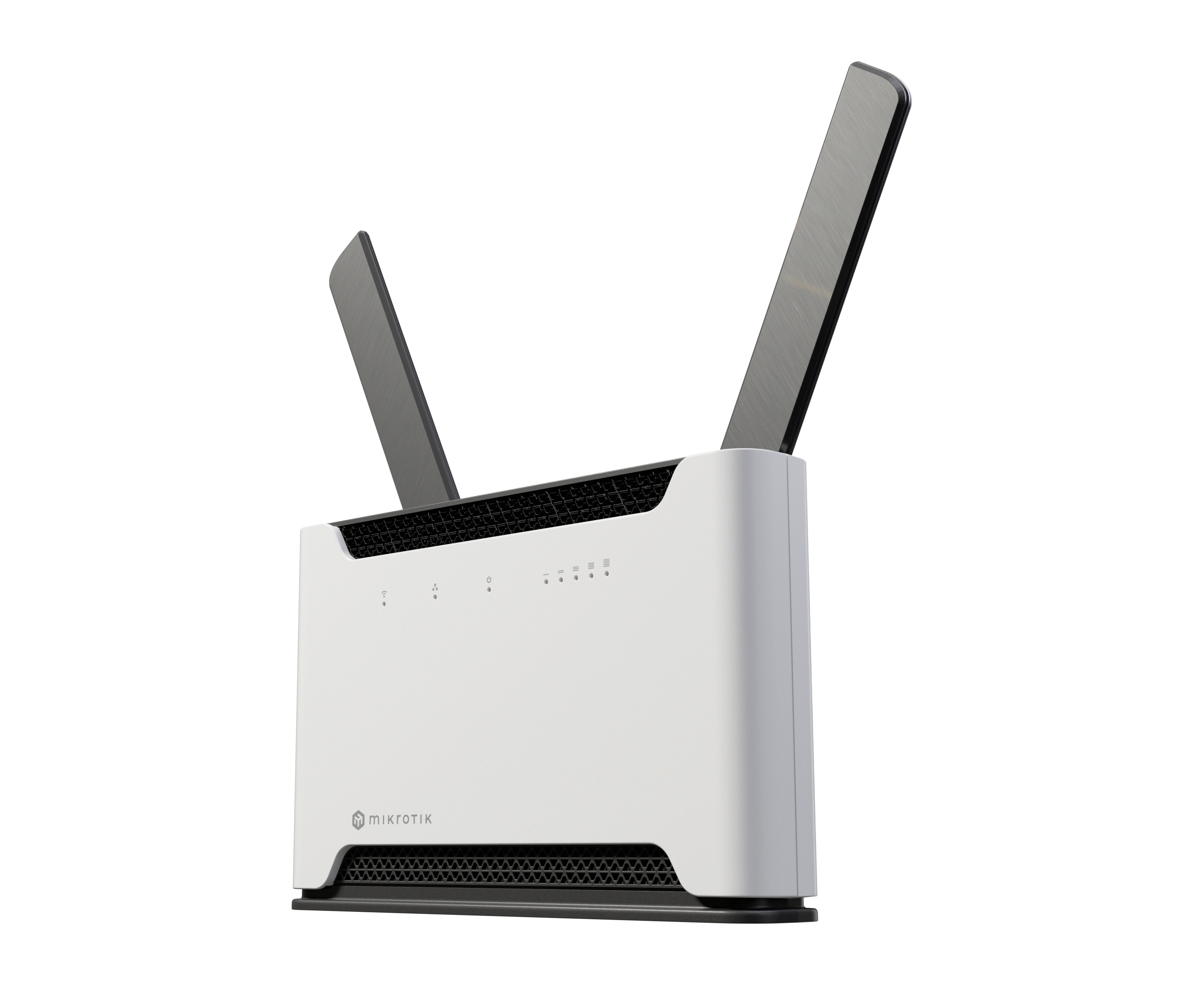

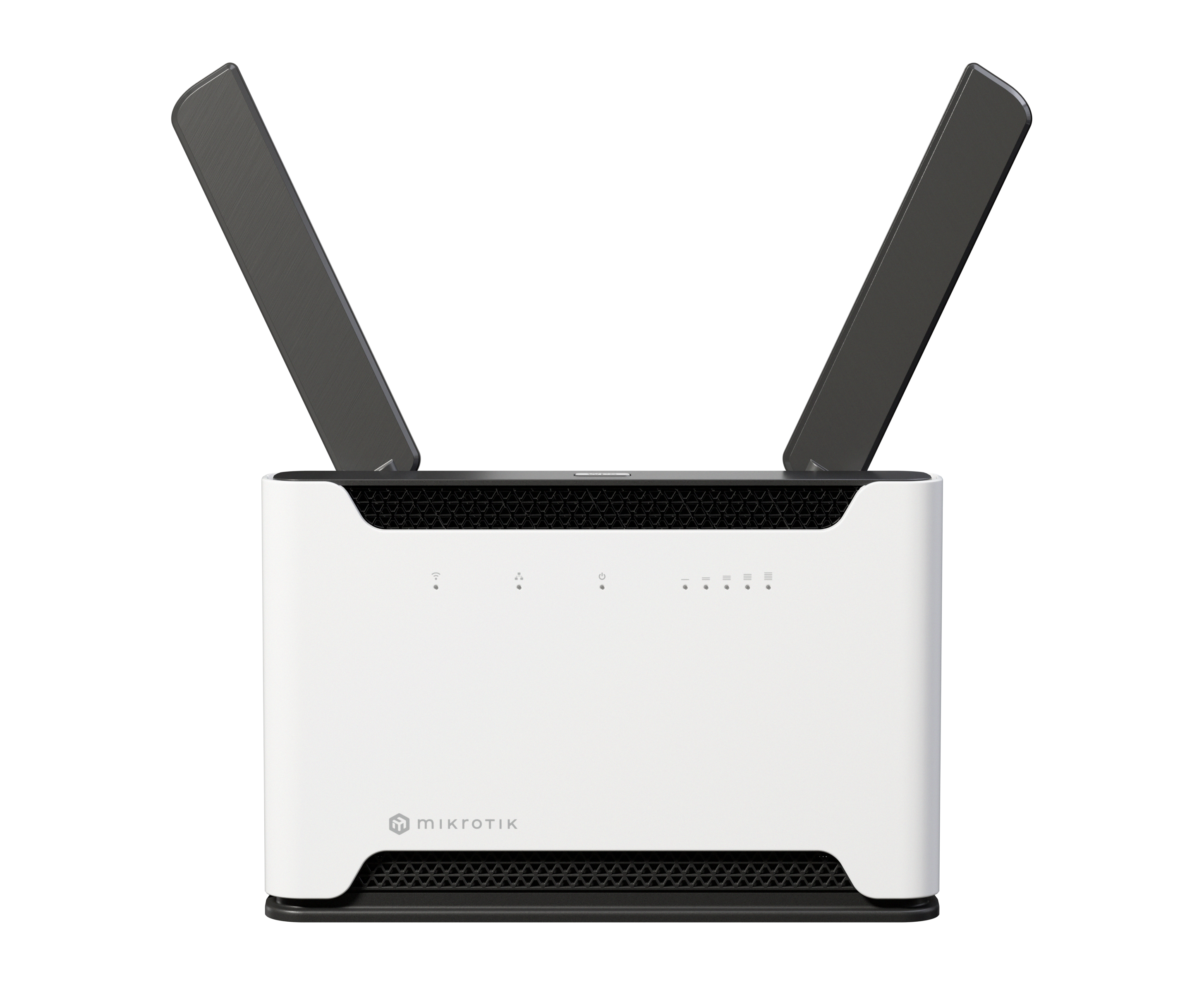

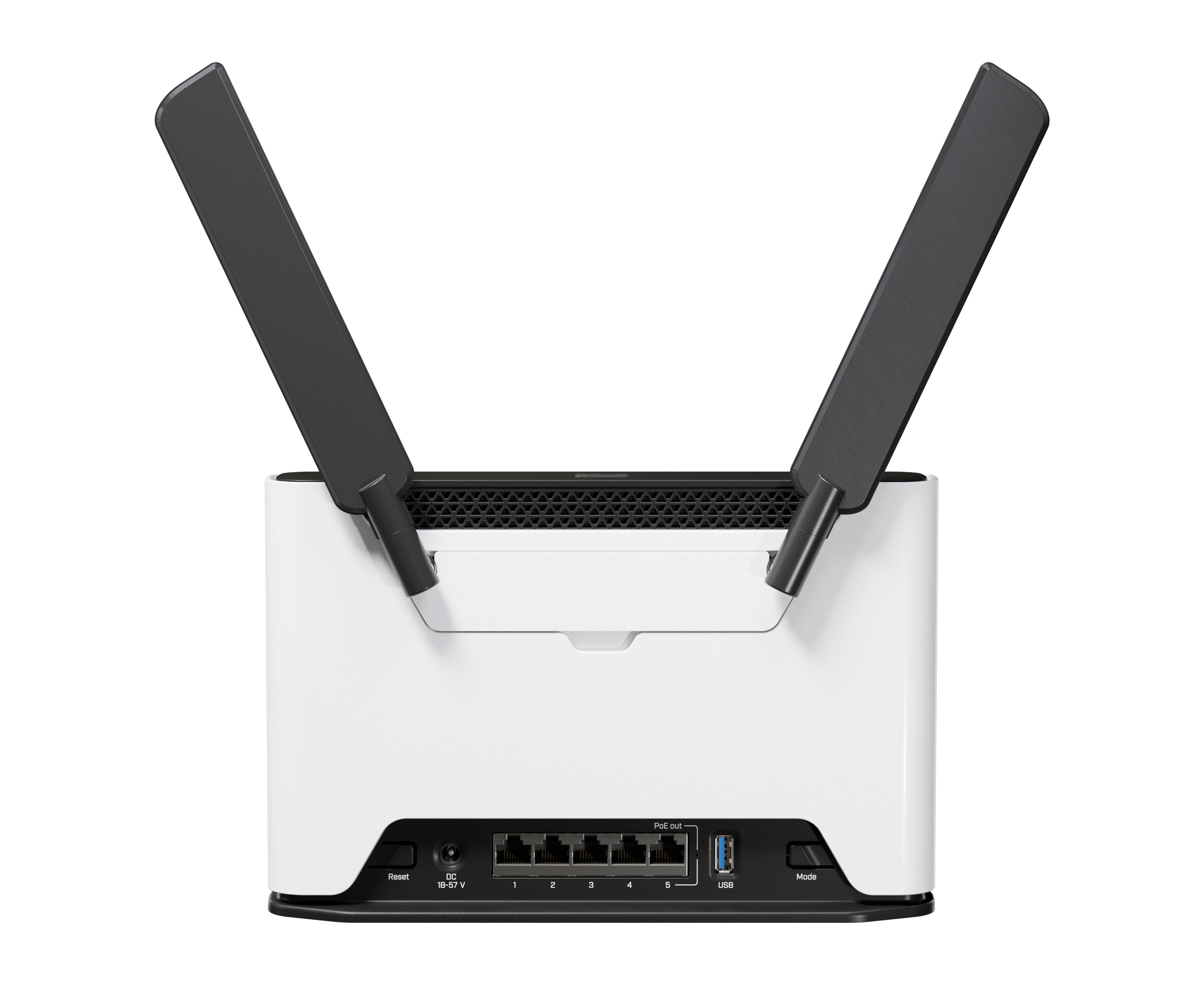

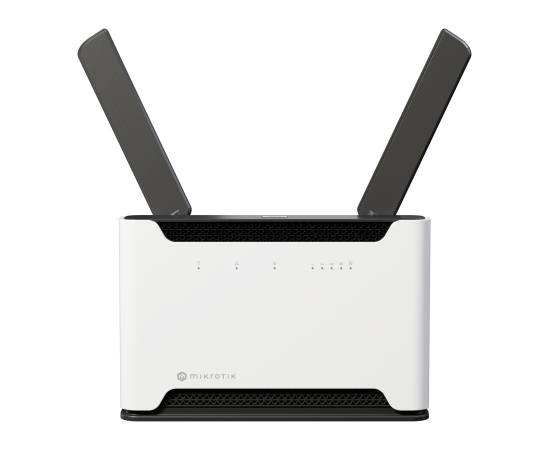

MikroTik H53UiG-5HaxQ2HaxQ, Chateau PRO ax, ARM64bit, Quad-Core 2.2GHz, 1GB, 5xGigabit, 1xPoE-Out, 1xUSB 3.0, 5dBi, 24dBm 4x4 @ 2.4GHz, 6dBi, 24dBm, 4x4 @ 5GHz, WiFi 6, AX3600, L6
Κωδικός Cableworks: 1002.433

BrandMikrotik MPNH53UiG-5HaxQ2HaxQ
218.00
χωρίς ΦΠΑ 175.81
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.

Specifications

Details
Product code H53UiG-5HaxQ2HaxQ
Architecture ARM 64bit
CPU IPQ-8072A
CPU core count 4
CPU nominal frequency 2208 MHz
Switch chip model IPQ-8072
RouterOS license 6
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $199.00


Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 1148 Mbit/s
Wireless 2.4 GHz number of chains 4
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 5
Wireless 2.4 GHz chip model QCN-5024
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5054
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX3600


Ethernet

Details
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1


Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5


Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 18-57 V
Max power consumption 55 W
Max power consumption without attachments 18 W
Cooling type Passive


PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 0.600 A
Total output current 0.600
Total output power 22.8


Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20


Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
