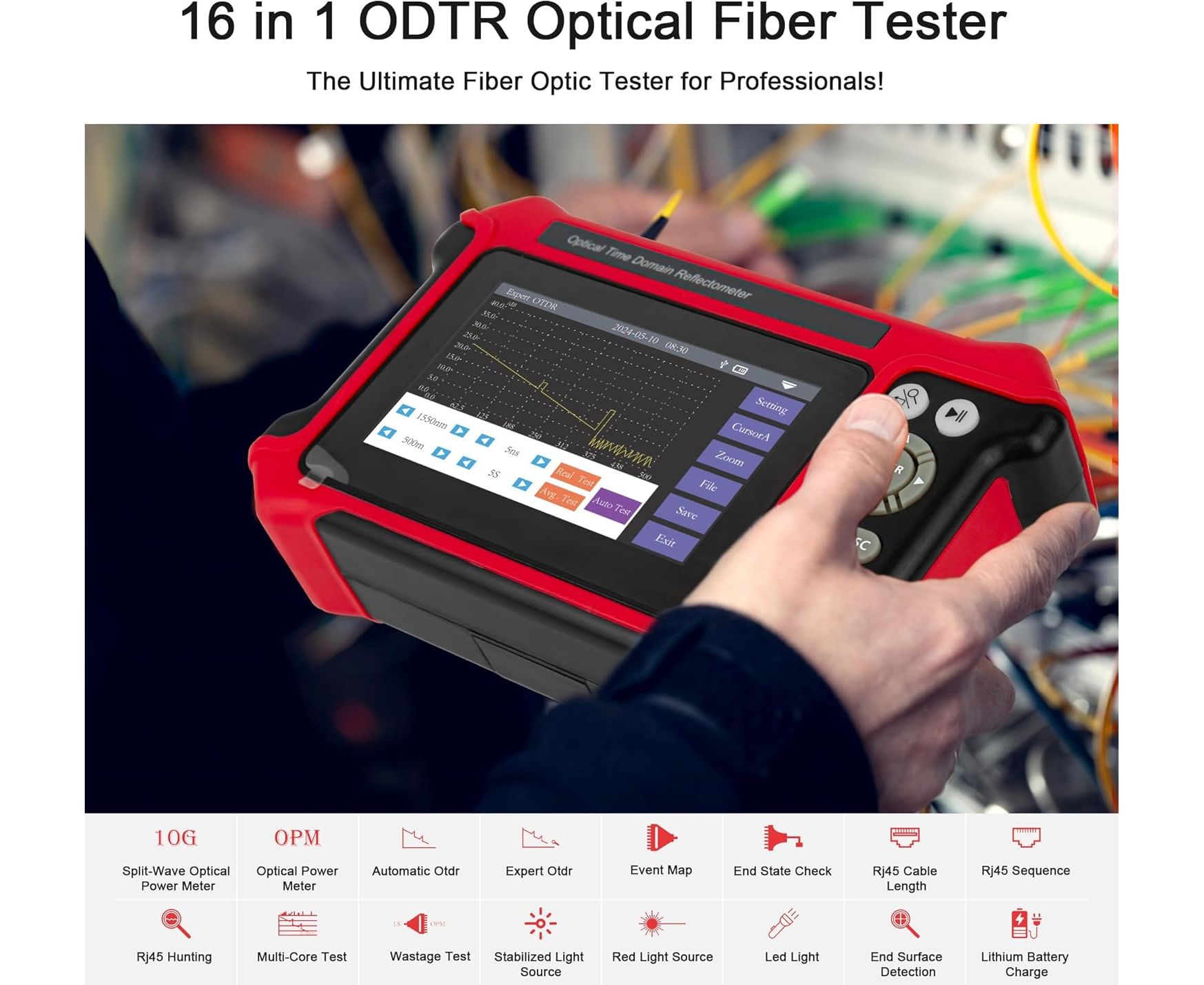

Noyafa NF-9816, Multi-Functional OTDR Instrument With Automatic OTDR, Expert OTDR, Event Map, 10G Split Wave Optical Power Meter
Κωδικός Cableworks: 1325.017

BrandNOYAFA MPNNF-9816

€550.00

χωρίς ΦΠΑ €443.55

Μη Διαθέσιμο

Αποστολές & Επιστροφές

Επιστροφές εντός 14 ημερών - Υπο Προϋποθέσεις
ΕΛΤΑ COURIER απο 1,77€ + ΦΠΑ
ACS COURIER απο 2,00€ + ΦΠΑ
ΠΡΑΚΤΟΡΕΙΟ για πάνω απο 25kg - Τρίτες και Πέμπτες - Χρέωση Παραλήπτη
Παραλαβή από έδρα

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Features & Benefits:

High-Precision Long-Distance Testing: Accurately diagnose fiber faults and measure performance over extended distances (up to 80 km) with a 22/20dB dynamic range, ensuring reliable network maintenance for telecom or enterprise applications.
Comprehensive Fiber Analysis: Quickly identify issues like breaks, bends, or splices through intelligent software analysis (Reflective/Reduce Events, Splitters, Fiber End), reducing troubleshooting time and improving repair efficiency.
User-Friendly Flexibility: Choose between Automatic OTDR for quick, one-click testing or Expert OTDR mode to customize parameters (wavelength, pulse duration), catering to both novices and professionals.
Safe and Non-Destructive Testing: High-isolation filtering technology protects sensitive optical components (e.g., transceivers) from damage during live network testing, ensuring operational safety.
Versatile LAN Troubleshooting: Diagnose common LAN cable faults (short circuits, open circuits, crosses) via Wire Mapping, streamlining network setup and maintenance for IT teams.
Accurate Cable Length Verification: Confirm cable installations meet specifications with 1–600m length testing, avoiding over-deployment or under-deployment in structured cabling projects.
Long-Lasting Portability: With a 4700mAh battery (6+ hours of continuous use) and Type-C charging, the device supports extended fieldwork without frequent recharging, ideal for remote locations.

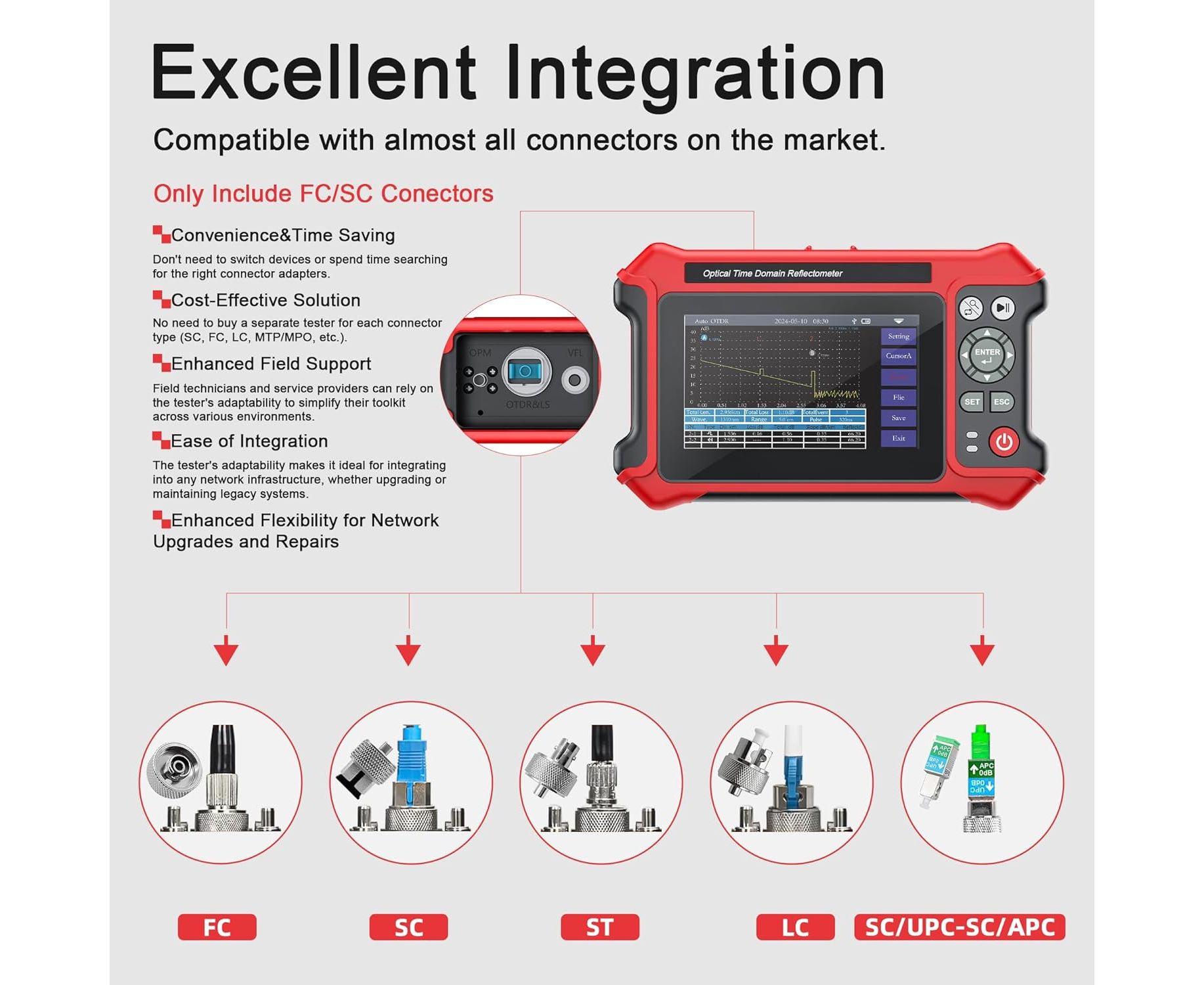

Universal Connectivity: SC/PC or FC/PC interfaces ensure compatibility with most fiber networks, reducing the need for adapters and simplifying testing across diverse infrastructures.
OTDR
- Wavelength: 1310/1550nm
- Fiber Type: G.652 SM Fiber
- Dynamic Range: 24dB/22dB
- Event Blind Zone : 10m
- ATT Blind Zone: 15m
- Test Range: 10m-60km
- Pulse Width: 5ns-10us
- Ranging Accuracy: ±(1m+Sampling Interval+0.005%xTest Distance)
- Loss Accuracy: ± 0.2dB/dB
- Sampling Points: 16k-128k
- Sampling Resolution: 0.05~8m
- Reflection Accuracy: ±3dB
- Data Storage: Internal: 2600: External: TF Card
- Laser Safety Level: Class Il level
- File Format: SOR Standard File Format
- Connector: FC/PC (Interchangeable SC、ST)or FC/APC (Interchangeable SC, ST)
OPM
- Wave Range: 800nm-1700nm
- Interface Type: Universal Joint FC/SC/ST
- Test Range: -50dBm~+26dBm
- Uncertainty:+5%
- Frequency Identification: CW/270/330/1k/2kHz
- Calibration Wavelength: 850/1270/1300/1310/1490/1550/1577/1625nm
LS
- LD Type: FPLD
- Output Wavelength: 1310/1550nm
- Output Power: 2-5dBm
- Modulation Frequency: 270/330/1k/2kHz
- Stability: CW,+0.5dB/15min (Test after15mins of preheating)
- Connector: FC/PC (Interchangeable SCST) or FC/APC (lnterchangeable SC,ST)
VFL
- Work Wavelength: 650nm土20nm
- Output Power: 10mW
- Mode: CW/1Hz/2Hz
- Connector: FCISC/ST
Other Parameters
- Dispaly: 3.5 inch Color LCD
- Data Interface: Micro USB
- External Storage: TF Card
- Power Supply: Polymer Li-battery 3.7V, 4000mAh
- Power Adapter: 5VDC, 2A
- Battery Life: Standby>20h;
- Measuring Time: >12h
- Operating Temperature: -10°C~+50°C
- Storage Temperature: -40°C~+70°C
- Relative Humidity: 0~95%
- Non Condensing Dimension: 173mmx82mmx37mm
- Weight: ≤350g
