2118502484

TP-Link OC220 v1.0, Omada Cloud Controller
Κωδικός Cableworks: 1004.534

BrandTP-LINK MPNOC220 v1.0

€109.00

χωρίς ΦΠΑ €87.90

Μη Διαθέσιμο

Ειδοποίηση όταν το προϊόν είναι ξανά διαθέσιμο

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Datasheet

Omada Hardware Controller

Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
Hardware Design for Businesses: A powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.

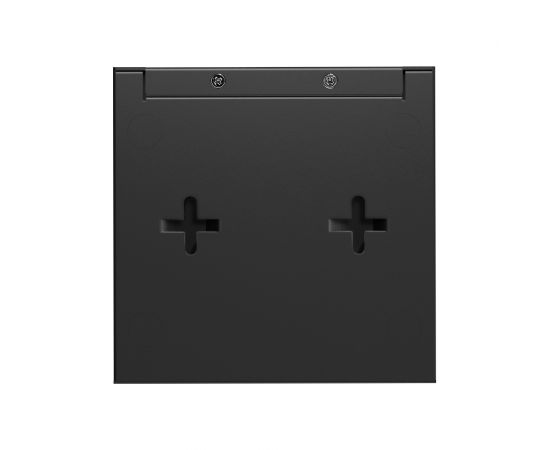

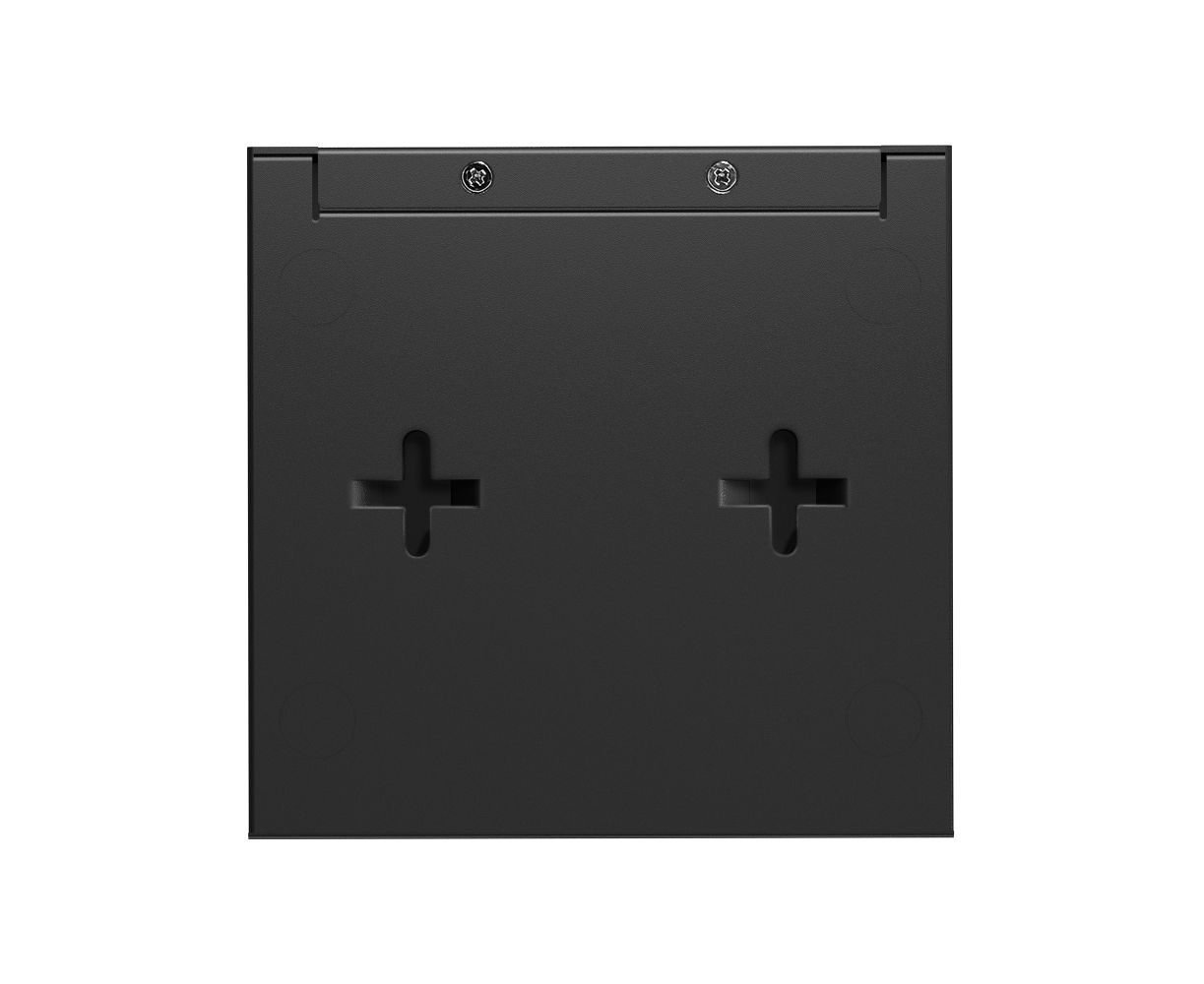

Flexible Deployment: 802.3af PoE or Micro USB (DC 5V/Minimum 1A) power supply and compact desktop or wall mount installation.

HARDWARE FEATURES

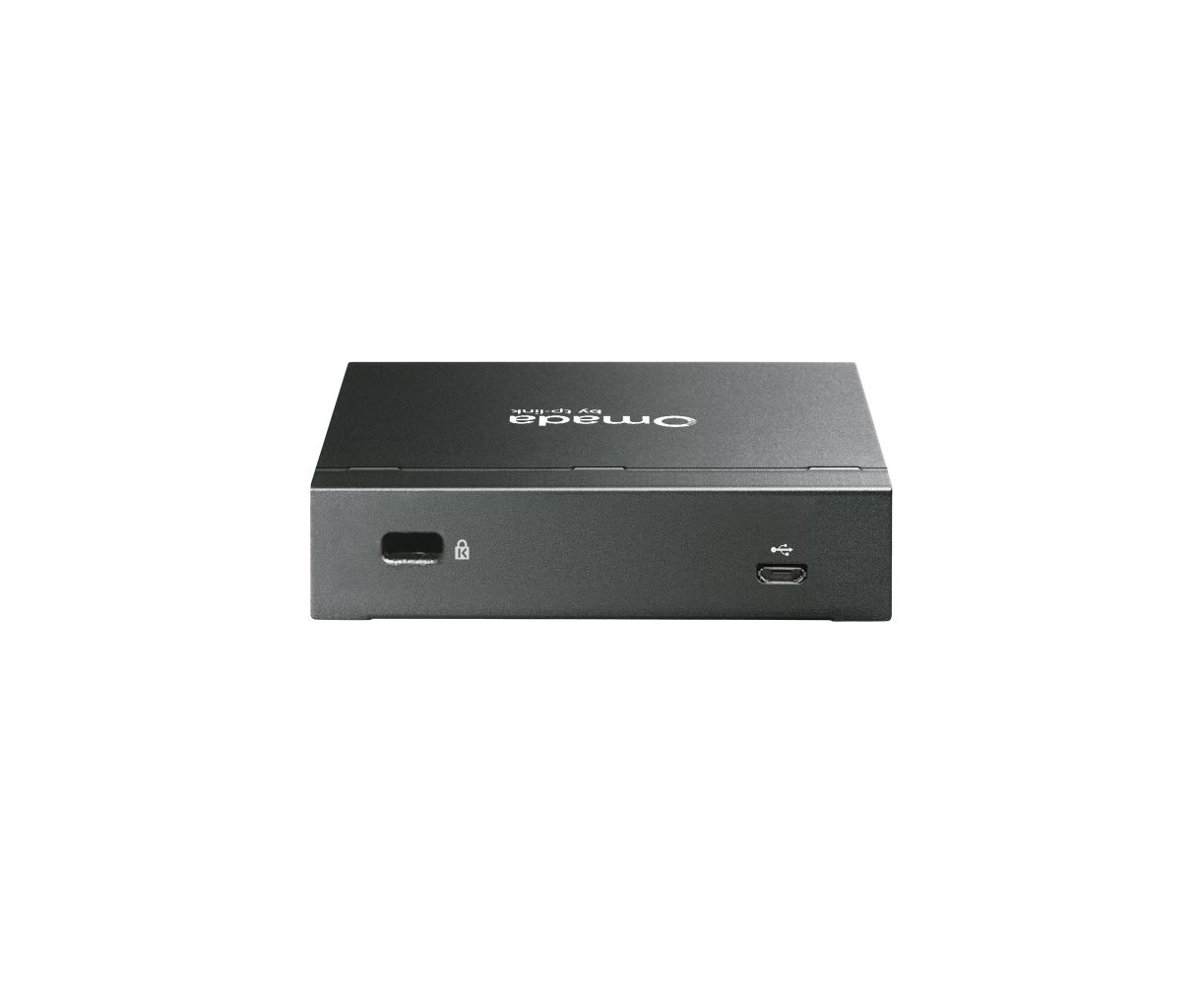

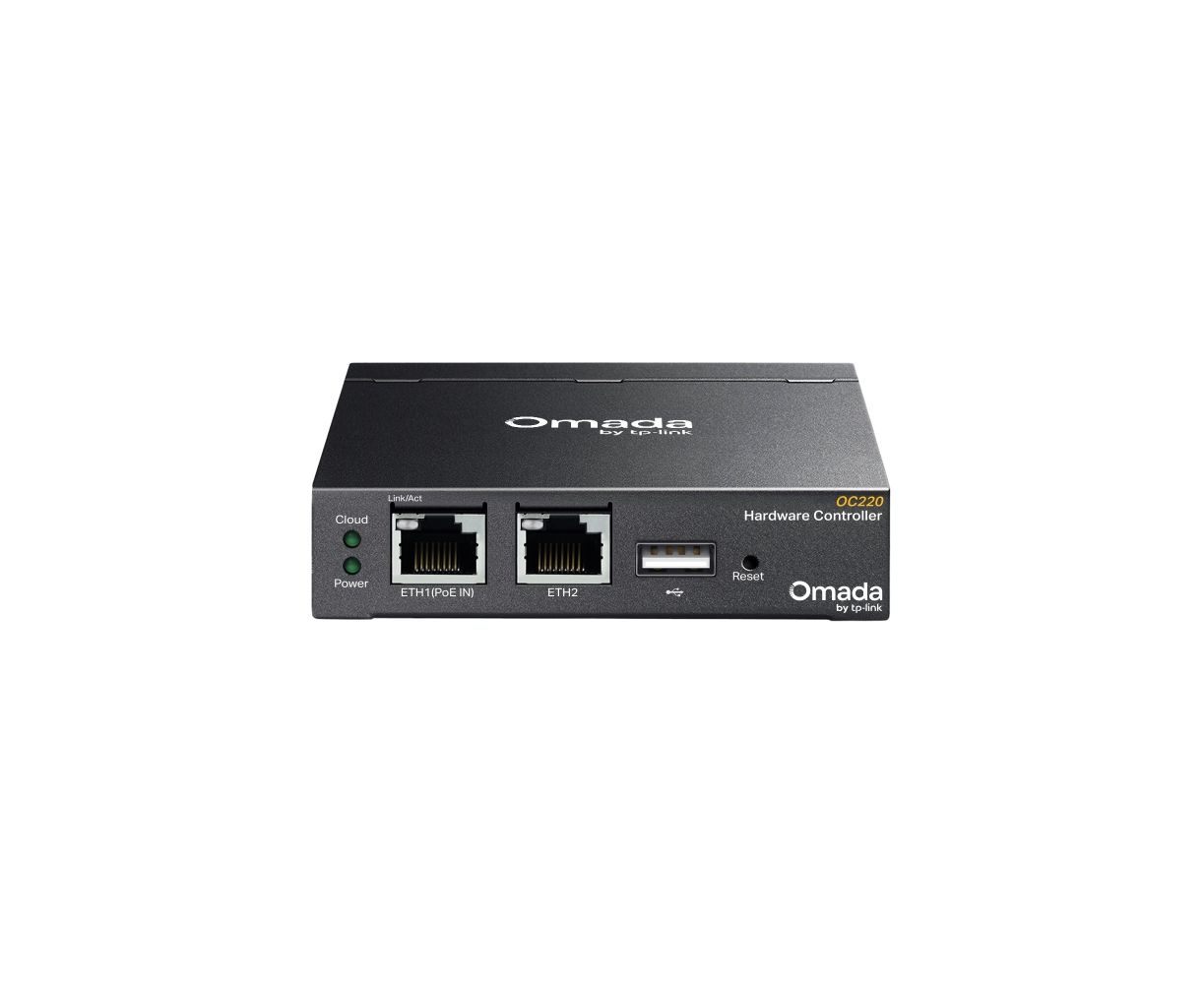

Interface	• 2× Gigabit Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port
Power Supply	• 802.3af PoE • Micro USB（DC 5V/Minimum 1A）
Dimensions ( W x D x H )	3.9×3.9×1.0 in (100×98×25 mm)

Management Features
Omada App	Yes
Centralized Management	• 100 Omada access points • 10 Omada gateways • A maximum of 20 Omada switches* • A maximum of 2 certain DeltaStream GPON OLTs* Note: Please refer to <href="https: www.omadanetworks.com="" en="" business-networking="" all-omada="" "="">www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 *The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.</href="https:>
Cloud Access	Yes
L3 Management	Yes
Multi-site Management	Yes
Management Features	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Content	• Omada Hardware Controller OC220 • Quick Installation Guide • RJ45 Ethernet Cable
System Requirements	Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	• Operating Temperature: -5–50 ℃ (23–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
