Nextion NX3224T024 - HMI Generic 2.4" TFT Intelligent LCD Touch Display for Arduino
Κωδικός Cableworks: 1116.845

BrandItead MPNIM150416002
52.08
χωρίς ΦΠΑ 42.00
Σε Απόθεμα
+
Wishlist
Αποστολές & Επιστροφές
Τρόποι πληρωμής
Γιατί Cableworks;
Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

CABLEWORKS

Αναλυτική Παρουσίαση

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

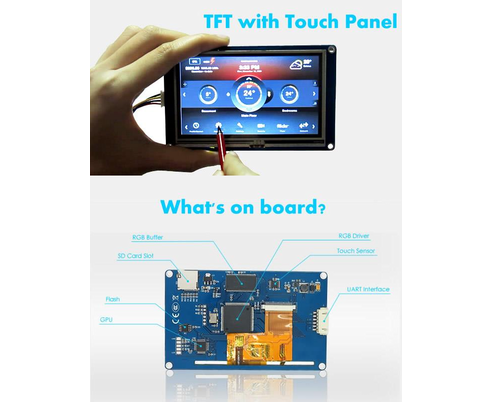

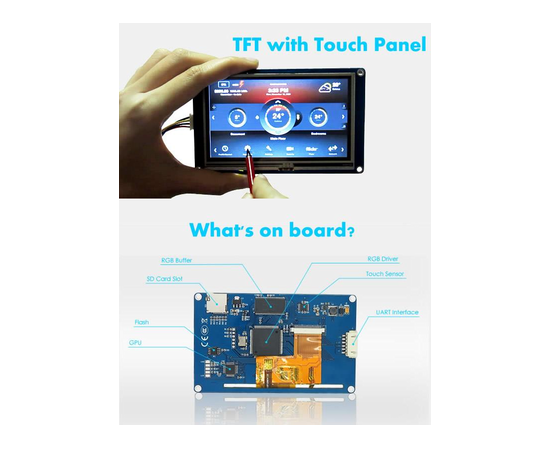

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.
NX2432T024 is a powerful 2.4'' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2K Byte RAM, 65k colors.



Features

  • 320 x 240 Resolution
  • Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2,3
  • RGB 65K true to life colours
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • On board micro-SD card for firmware upgrade
  • Visual Area:36.72mm(L)×48.96mm(W)
  • Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
  • 5V90mA power consumption
  • Generic using for all Arduino or Raspberry Pi project
  • NX3224T024 - Itead

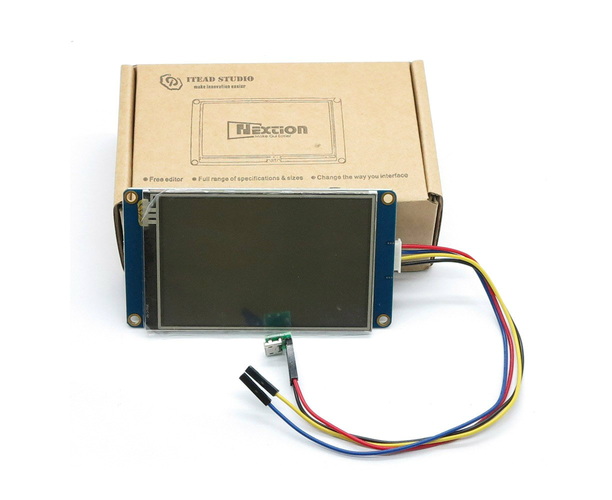

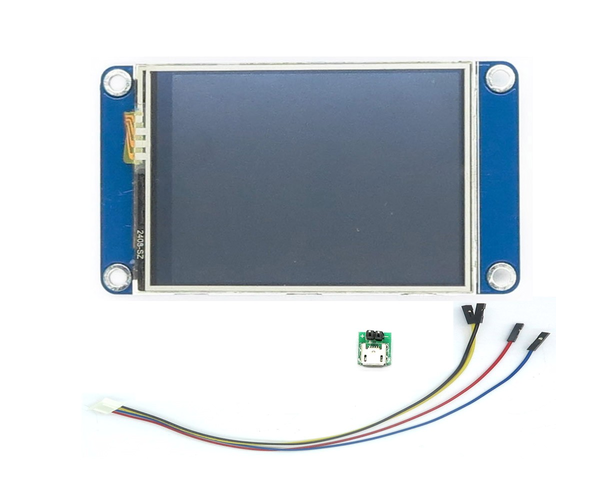

Package includes a Basic Nextion 2.4'' display, a wire and a power supply test board.

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.



Discontinued No
Link Wiki No
Display Resolution 320 * 240
Display Interface Serial
Screen Type Touch Screen
Display Controller No
TFT display interface N/A
Display Size 2.4”
Board Size 74.4*42.9mm
Expand

SD Card Socket

Touch Screen

Weight 62 g
