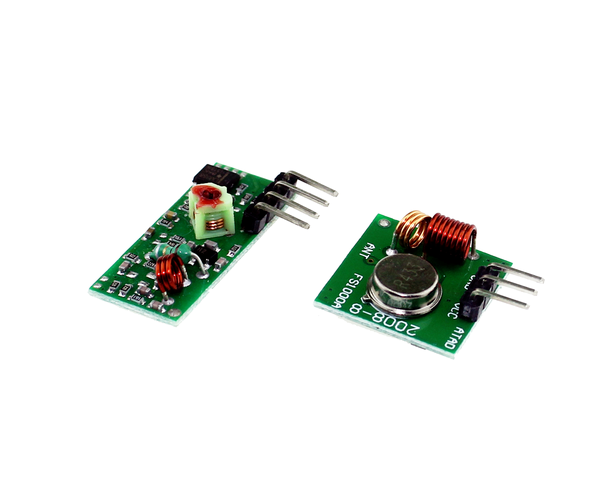

315Mhz RF Transmitter & Reciever Kit for Arduino
Κωδικός Cableworks: 1116.623

BrandOEM MPNOEM

€1.69

χωρίς ΦΠΑ €1.36

Σε Απόθεμα

Ποσότητα:

+ −

Αποστολές & Επιστροφές

Τρόποι πληρωμής

Γιατί Cableworks;

Γρήγορη και ασφαλής παράδοση

Αποστέλλουμε παραγγελίες σε όλη την Ελλάδα με ΕΛΤΑ Courier και ACS

Presales και Aftersales

Για να σας λύνονται όλες οι τεχνικές απορίες

Επιστροφές εντός 14 ημερών

Αρκεί το προϊόν να μην έχει ανοιχτεί και να μην έχουν προκληθεί φθορές στην συσκευασία του

Receiver module parameters

Product Model: MX-05V
Operating voltage: DC5V
Quiescent Current: 4MA
Receiving frequency: 315MHZ
Receiver sensitivity:-105DB
Size: 30 * 14 * 7mm
External antenna: 32CM single core wire, wound into a spiral

Technical parameters of the transmitter head

Product Model: MX-FS-03V
Launch distance :20-200 meters (different voltage, different results)
Operating voltage :3.5-12V
Dimensions: 19 * 19mm
Operating mode: AM
Transfer rate: 4KB / S
Transmitting power: 10mW
Transmitting frequency: 315M
An external antenna: 25cm ordinary multi-core or single-core line
Pinout from left → right: (DATA; VCC; GND)

Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Remark
1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 315M of about 17cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.
